| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | WLDH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |

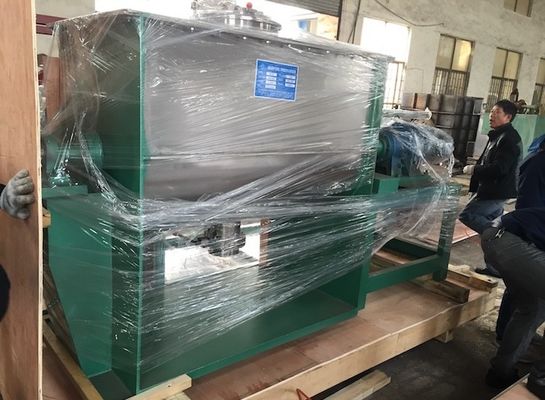

| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Paddle Mixer/industrial Powder Mixer | Mixer Type: | Horizontal |
|---|---|---|---|
| Feature: | Stirring Paddle | Mixing Type: | Wet Mixer |
| Processing Object: | Powder Mixer | Structure: | Mixing Paddle |
| High Light: | powder blending machine,powder blending equipment |
||

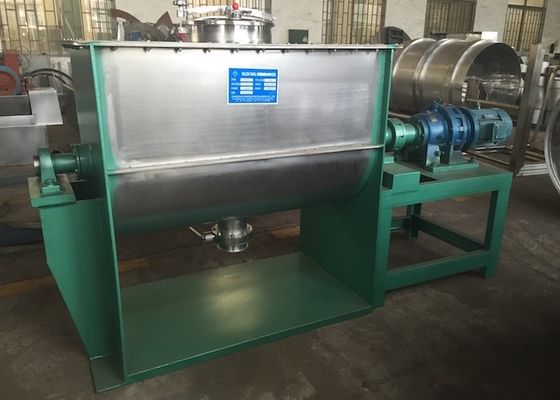

WLDH-1000L horizontal type paddle mixer for viscous powder material
Application
WLDH-1000L horizontal type paddle mixer for viscous powder material by a U-shaped shell, spiral mixer into the blades and drive components; spiral ribbon blade is double internal and external structure of the material from both sides of the outer spiral to the central collection, inner spiral of the material transport from the center to both sides , forming convective mixing . Horizontal ribbon mixer for cohesive or cohesive mixture of powder and add the liquid and pasty powder mixed materials with good results , cylinder cover can be made fully open the door , so that the equipment replace cleaning products.
Function
Horizontal ribbon mixer is widely used in chemical, battery materials , paints, dyes , pesticides , pharmaceuticals , food, feed , additives , refractory materials, new materials , electronic plastics, ceramics , fertilizers , metallurgy , mining, dry mortar , special building materials other sectors of the powder and solid , powder and liquid mixture . Horizontal ribbon mixer cone mixer mixing efficiency is doubled.
Characteristics
Horizontal ribbon mixer compared with other mixers mixing time is short, wide adaptability does not destroy the mixed materials , easy to clean cleaning , etc., will not be pressure on the material feed and grinding of coarse material, a mixture of fine material has good adaptability. Horizontal ribbon mixer without destroying the state of the mixture , produced in the body laterally staggered convection , mixing , diffusion and other complex motion, so that the material mixture in a short time to achieve the best results.
Technical Parameters
| Model | Volumem3 | InputcapacityL/batch | Totalpowder(kw) | Weight (kg) | Overalldimension(mm) |
| WLDH-0.1 | 0.1 | 30-50 | 3 | 300 | 1190×740×770 |
| WLDH-0.3 | 0.3 | 100-150 | 4 | 500 | 2030×630×980 |
| WLDH-0.5 | 0.5 | 200-300 | 7.5 | 900 | 2320×730×1130 |
| WLDH-1 | 1 | 400-600 | 11 | 1400 | 2800×920×1320 |
| WLDH-1.5 | 1.5 | 600-900 | 11 | 1900 | 3180×1020×1550 |
| WLDH-2 | 2 | 800-1200 | 15 | 2500 | 3310×1120×1640 |
| WLDH-3 | 3 | 1200-1800 | 18.5 | 3100 | 3750×1290×1820 |
| WLDH-4 | 4 | 1600-2400 | 30 | 3600 | 4220×1400×1990 |
| WLDH-6 | 6 | 2400-3600 | 37 | 5300 | 4700×1610×2260 |
| WLDH-8 | 8 | 3200-4800 | 45 | 6800 | 4420×2150×2470 |
| WLDH-10 | 10 | 4000-6000 | 55 | 8900 |
Note:Thisseriesisdesignedaccordingtothevolume.Fordifferentmaterials,themixcapacityisdifferent.onlyforreference.
