| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | WLDH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Industrial Ribbon Mixers/industrial Powder Mixer | Mixer Type: | Horizontal |
|---|---|---|---|
| Feature: | Stirring Paddle | Mixing Type: | Wet Mixer |
| Processing Object: | Powder Mixer | Structure: | Mixing Paddle |
| High Light: | powder blending machine,powder blending equipment |
||

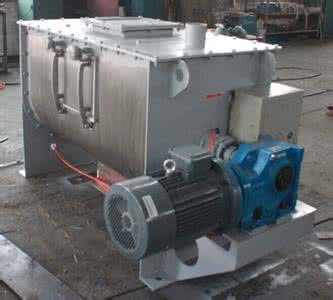

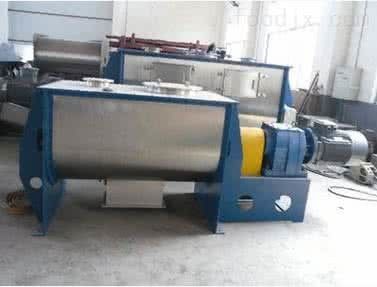

WLDH-0.5 powder double helical horizontal industrial ribbon mixers
Double Helical Ribbon Blender Mixer , Horizontal Industrial Ribbon Mixer Machine WLDH-0.5
Description
WLDH-0.5 powder double helical horizontal industrial ribbon mixers is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre front two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to form convection mixing. The cubage can be made into rotundity, so the jacket can be played in reaction and drying.
Application
WLDH-0.5 powder double helical horizontal industrial ribbon mixers is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.
Features
a. Less influence on particle size and density
b. Good mixing effect for different viscosities
c. Wide application, strong adaptability
d. SS ribbon, mirror polishing, easy to clean
e. Large discharging outlet, manual or pneumatic valve discharging, to ensure smooth discharging and less residual
Technical Parameters
| Model | Volumem3 | InputcapacityL/batch | Totalpowder(kw) | Weight (kg) | Overalldimension(mm) |
| WLDH-0.1 | 0.1 | 30-50 | 3 | 300 | 1190×740×770 |
| WLDH-0.3 | 0.3 | 100-150 | 4 | 500 | 2030×630×980 |
| WLDH-0.5 | 0.5 | 200-300 | 7.5 | 900 | 2320×730×1130 |
| WLDH-1 | 1 | 400-600 | 11 | 1400 | 2800×920×1320 |
| WLDH-1.5 | 1.5 | 600-900 | 11 | 1900 | 3180×1020×1550 |
| WLDH-2 | 2 | 800-1200 | 15 | 2500 | 3310×1120×1640 |
| WLDH-3 | 3 | 1200-1800 | 18.5 | 3100 | 3750×1290×1820 |
| WLDH-4 | 4 | 1600-2400 | 30 | 3600 | 4220×1400×1990 |
| WLDH-6 | 6 | 2400-3600 | 37 | 5300 | 4700×1610×2260 |
| WLDH-8 | 8 | 3200-4800 | 45 | 6800 | 4420×2150×2470 |
| WLDH-10 | 10 | 4000-6000 | 55 | 8900 |
Note:Thisseriesisdesignedaccordingtothevolume.Fordifferentmaterials,themixcapacityisdifferent.onlyforreference.
