| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | VI |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | V Shape Powder Mixer | Feature: | Mixing Paddle |
|---|---|---|---|
| Mixing Mode: | Forced Mixing | Application: | Large Specific Gravity |
| Speed Control: | By Transducer | Material: | 304,316 |
| High Light: | powder mixing machine,powder blending equipment |
||

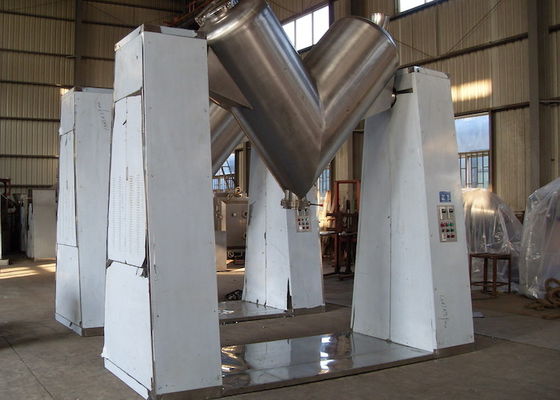

VI Series forced Mixing V shape powder mixer with mixing paddle
Forced Powder Blending Equipment , V Shape Powder Mixer With Paddle VI Series
Description
VI Series forced Mixing V shape powder mixer with mixing paddle can mix fine powder, caked or two more powder raw material ,raw material containing certain moisture. particularly it can also mix raw material that needs to add small amount of additive and satisfied mixing result is also needed.
Technical Parameters
| Type | capacity (kg/batch) |
Total volume (m3) |
Mixing time (min) |
Power (kw) |
Rotating speed(r/m in) |
Stirring speed(r/min) | Overall dimension(mm) | Weight (kg) |
| VI 180 | 60 | 0.18 | 2-5 | 1.1/2.2 | 12 | 300 | 1730-700-1580 | 320 |
| VI 300 | 80 | 0.3 | 4-10 | 1.1/2.2 | 12 | 300 | 1730-700-1580 | 360 |
| VI 500 | 130 | 0.5 | 1-10 | 1.1/2.2 | 12 | 300 | 2660-1250-2400 | 600 |
| VI 1000 | 240 | 1 | 6-10 | 3/2.2 | 12 | 300 | 3220-1500-2840 | 1000 |
