| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | CH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Wet Mixer/ribbon Mixer | Mixer Type: | Trough |
|---|---|---|---|
| Feature: | Slot Shape | Application: | WDG Mixer |
| Special Design: | Liquid Feeding | ||
| High Light: | WDG ribbon blender mixer,horizontal ribbon mixer |
||
CH 300 no dust and closed trough type Ribbon Mixer for WDG mixer
CH 300 No Dust / Closed Ribbon Blender Machine Trough Type For WDG Mixer
1. All stainless
2. Homogeneous mixing
3. GMP complaint
4. meeting iso 9001 and CE certificate
5: u shaped deisgn
Main Application:
CH 300 no dust and closed trough type Ribbon Mixer for WDG mixer is used in medicine, chemical and food industries. It can mix powder or pasty materials.
Working principle:

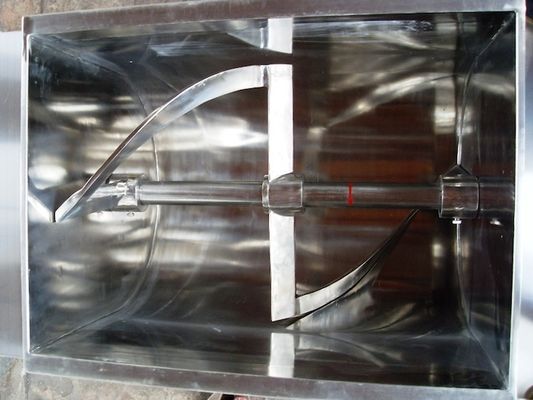

S type agitating paddle is rotated through mechanical driving, which pushes the material turn repeatedly and mix uniformly. Operated with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus, it improves the mixing quality of each batch of material.
Technical Parameters
| MODEL | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| Paddle shape | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle |
| Working volume (L) | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| mixing speed (r/min) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Stir angle (°) | <105 | <105 | <105 | <105 | <105 | <105 | <105 | <105 |
| Mixing power (kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Dumping power (kw) | 0.37 | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
| Weight(kg) | 280 | 350 | 410 | 450 | 520 | 580 | 680 | 750 |
| Overall size (L×W×H)(mm) |
1200×500 ×950 |
1400×580 ×1000 |
1600×600 ×1150 |
1700×650 ×1200 |
1800×700 ×1250 |
2100×750 ×1250 |
2250×800 ×1300 |
2400×850 ×1350 |
