| Place of Origin: | China |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GHL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Payment Terms: | T/T or LC at sight |
| Supply Ability: | 20 sets per month |
| Product Name: | Wet Mixer/mixing Granulator | Application: | Pharmaceutical |
|---|---|---|---|
| Discharging Mode: | By Cylinder | Feature: | Sway Granulator |
| Standard: | CE/ROHS/FCC/SGS | Mixer Type: | Vertical Type |
| High Light: | horizontal ribbon mixer,400L Industrial Mixers And Blenders Machine |
||

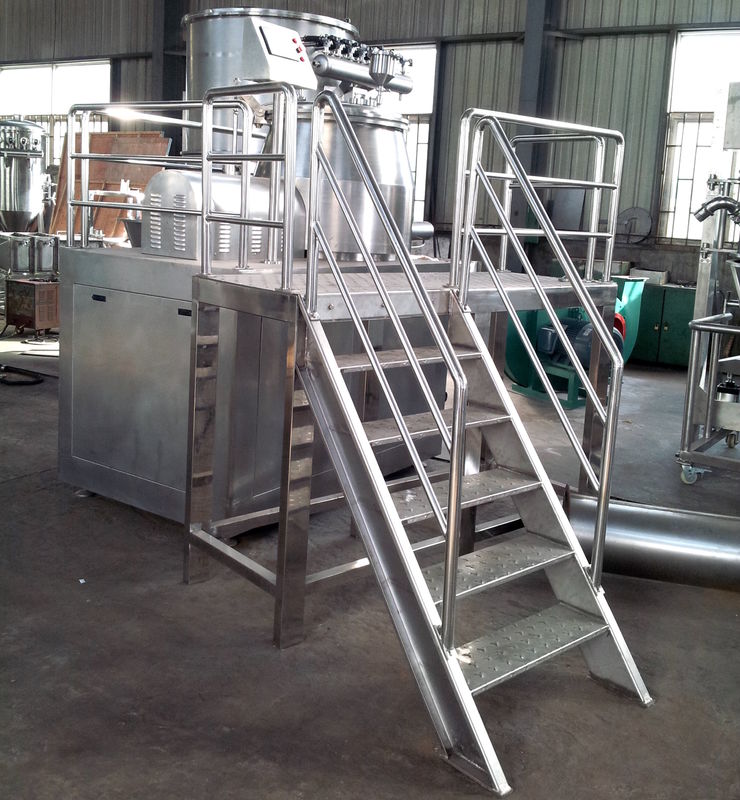

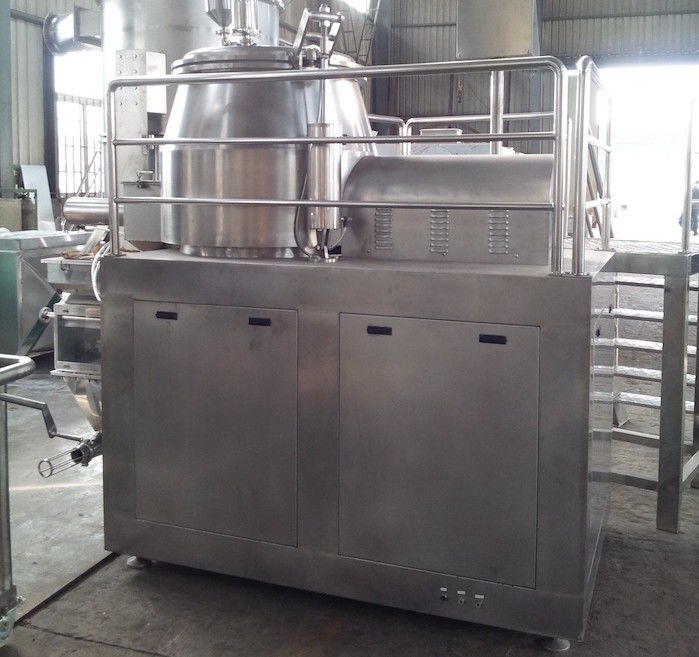

Model GHL 400 pharmaceutical vertical type mixing granulator with granulator
Vertical Type Industrial Mixers And Blenders Machine GHL 400 ROHS Approved
General intoduction
Work principle
The powder raw material and adhesive are mixed to moisture soft material through mixing oar at the bottom of the cylinder (cone) container. Then cut it to become uniform damp granule through high speed crushing oar installed at the side.Finshed product is discharged by cylinder.
Features
1) Adopt horizontal cylinder structure, make material roll frequently and quickly during mixing process, reach a perfect mix effect.
2) PLC control, display by touch screen. Control the setted parameter automaticly. Via the inverter, insure a steady mix speed, and then get the uniform granule.
3) Drive with air filled seal shaft, and when cleaning, can change with water.
4) Special designed mix oar, make the least material stick on the inner wall, and easy for removing the adhesive material.
5) Fluidization granulation, make the product with good fluidity and suit for next process, such as tablet pressing, granulating.
Technical parameters
| Name | GHL-400 |
| Capacity(L) | 400 |
| Outpu(kg/batch) | 200 |
| Mix speed(r.p.m) | 106/155 |
| Mixer power(kw) | 18.5/22 |
| Cutting power(kw) | 6.5/8 |
|
Compressed air consumption |
1.5 |
