| Product Name: | Spin Flash Dryer / Rotating Flash Dryer | Feeding Mode: | Screw Feeder |
|---|---|---|---|
| Discharging Mode: | Cyclone And Bag Filter | Processing Object: | Wet Paste |
| Features: | Rapid Revolving | Standard: | CE/ROHS/FCC/SGS |
| High Light: | flash drying equipment,20kw Industrial Rotary Dryer |
||

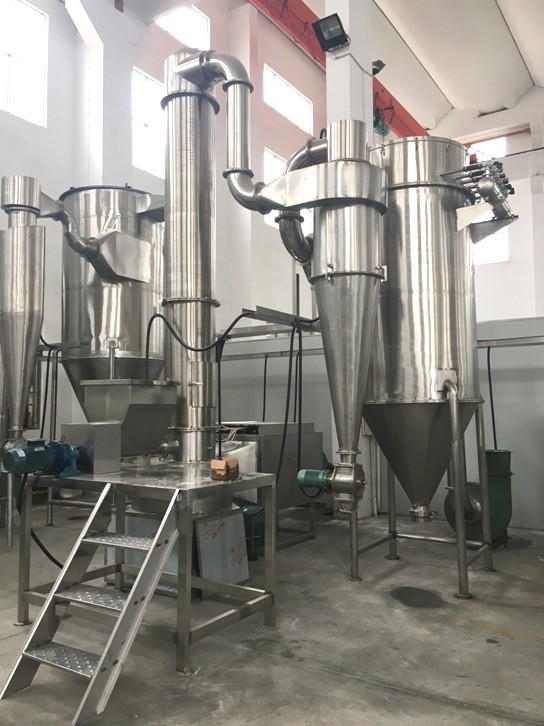

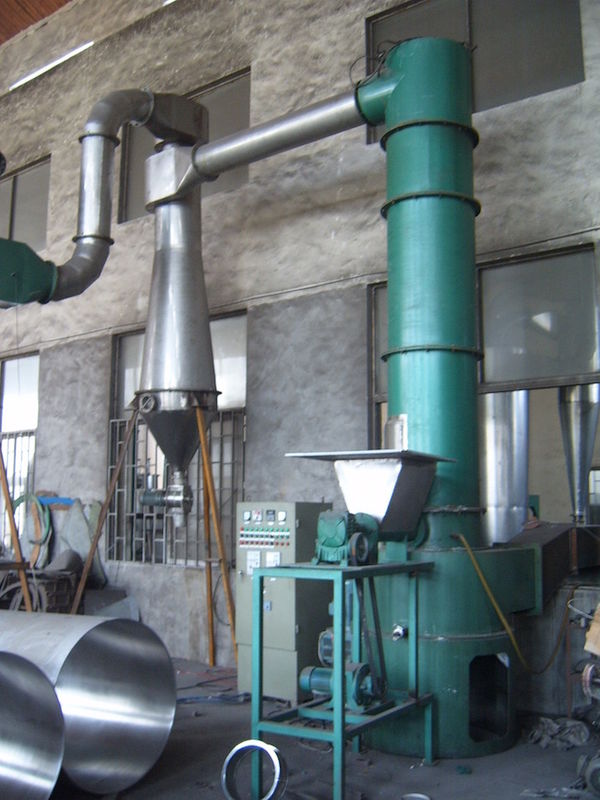

XSG-4 lab use rotating flash dryer with bag filter and cyclone
Screw Feeder Industrial Rotary Dryer , Rotary Drying Equipment With Bag Filter / Cyclone
Operation:
XSG-4 lab use rotating flash dryer with bag filter and cyclone uses a heated gas to pneumatically convey the feed up a flash tube and into a primary air separation device; most commonly a cyclone. Air is induced or forced into the feed area through a hot gas generator where it entrains the feed and flashes off the moisture as it conveys. The product is fed into the throat of the feed area in a controlled fashion. The particles attain a velocity in the order of 80% of the conveying velocity. Secondary dust collection such as multiclones, baghouses, scrubbers and electrostatic precipitators are required for fine products.
Feeding / discharge:
Automatic and continuous. Vibrators, screw feeders, rotary airlocks, double flap valves, gravity chutes. Backmixing is most effective on sludge's. Feed introduced into airstream via venturi or use of disintegrator technology.
Feed Characteristics:
Slurries, pastes, and sludges (all with back mixing), friable filter cakes, powders, granules. Feed needs relatively consistent particle size. Very large particles present challenges. Low to high feed rates
Heat Source:
Steam, electrical, coal, liquid fuels, or gas
Exposure:
Mostly Direct. Flow is co-current.
Residence time:
Extremely short (seconds). Residence time can be altered by increasing hold up times in cyclone.
Extraction:
Normally induced. Systems can have combustion, forced and induced draft fans for operation.
Dust Collection:
Cyclones, baghouses, scrubbers, Electrostatic precipitators. Systems require significant dust collection since this is the product collection mechanism.
Control:
PLC, infrequently solid state controllers. System controls on discharge temperature. Can modulate energy and feed.
Benefits:
Very intimate contact with air/gas stream
Excellent transfer of energy
Ideal for heat sensitive, explosive or reactive products
Small real estate requirements
Flash tube is flexible, can be routed within plant constraints
Low maintenance - few moving parts
High temperature operation
Limitations:
Loss of power will cause product to fall into dryer base
May cause size reduction due to attrition and impact
High energy costs for fans and dust collection
Products displaying a high degree of bound moisture may not be suitable for this technology
May be susceptible to high wear if improperly accounted for
Technical parameters
| Model | XSG-2 | XSG-4 | XSG-6 | XSG-8 | XSG-10 | XSG-12 | XSG-16 | XSG-20 |
| ID of main machine(mm) | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 |
| Air amount(m3/h) | 350-500 | 1150-2000 | 2450-4500 | 4450-7550 | 7000-12500 | 10000-18000 | 18000-30500 | 50000-78000 |
| Evaporated moisture(kg/h) | 12-17 | 40-70 | 80-150 | 150-250 | 230-420 | 300-600 | 600-1000 | 1000-1500 |
| Max equipped power (kw) | 10 | 20 | 40 | 65 | 85 | 105 | 150 | 230 |
| Max height(m) | 4.0 | 4.8 | 5.8 | 6.4 | 7.1 | 7.8 | 8.5 | 10.1 |
| Occupied area(m2) | 15 | 20 | 28 | 35 | 40 | 52 | 80 | 150 |
Dimension
| Type | Height | Length | Width |
| XSG-4 | 4600 | 5500 | 5000 |
| XSG-6 | 5500 | 6550 | 6000 |
| XSG-8 | 6000 | 7100 | 5600 |
| XSG-10 | 7100 | 8200 | 6700 |
| XSG-12 | 7500 | 8900 | 7000 |
| XSG-14 | 7800 | 10500 | 8500 |
| XSG-16 | 8500 | 14500 | 11000 |
Note: all details above for reference only. Because of material features, the parameters vary. we have the right to change but not notice, pardon!
