| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | XSG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Spin Flash DryerFlash Vaporization Dryer | Application: | Zinc Sulfate |
|---|---|---|---|
| Feeding Mode: | Screw Feeder | Discharging Mode: | Cyclone And Bag Filter |
| Processing Object: | Wet Paste | Features: | Rapid Revolving |
| Standard: | CE/ROHS/FCC/SGS | Material: | 304SS,316L |
| High Light: | 85kw rotary flash dryer,flash drying equipment |
||

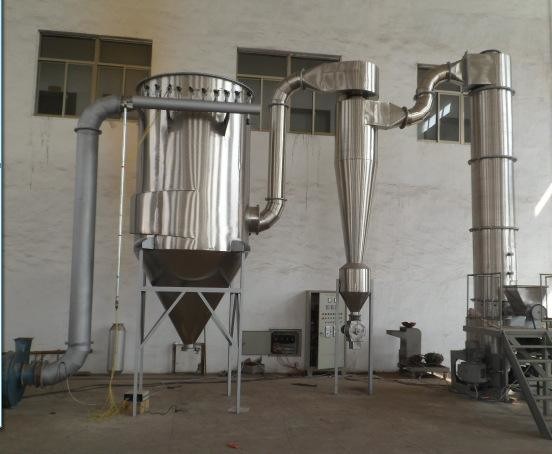

XSG Model Rapid Revolving Flash Vaporization Dryer For Zinc Sulfate
Zinc Sulfate Spin Flash Dryer Vaporization Dryer Rapid Revolving XSG Model
High volume, availability and thermal efficiency covering small to extremely large throughputs.
XSG Spin Flash Dryer Description
XSG Model Rapid Revolving Flash Vaporization Dryer For Zinc Sulfate is widely used for drying materials such as paste, cake shape, powder, granules material, etc. It is a new type high drying efficiency and low energy consumption equipment that researched and developed by our company.
Hot air enters the stirring part of drying chamber from the bottom, material is stirred by stirring device and then the hot air exerts strong shearing, blowing, floating and rotating effect to material. Therefore material is crushed by centrifugal, shearing, impacting and friction effect. It strengthens the heat exchanging process. In the bottom of drying chamber, big and damp granules are crushed by stirring device, the particles with low moisture content and small size are lifted by rotary air stream, and be further dried. Gas and solid two phases rotary flow, inertia of solid phase is bigger than gas phase, the relative velocity between gas phase and solid phase is high, heat exchanging efficiency is strengthened, so the drying intensity of this machine is high.
Application
Ceramic industry: Kaolin, bentonite, clay, etc.
Foodstuff industry: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch, etc.
Organics: Atrazine, lauric acid cadmium, benzoic acid, sodium oxalate, acetyl cellulose, etc.
Dyestuff: Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates, etc.
Inorganic: Borax, calcium carbonate, hydrogen peroxide, etc.
Substance: Copper suifate, ferrix oxide, three antimony oxide, all kinds of metal salt, synthetic cryolite, etc.
Benefits:
Very intimate contact with air/gas stream
Excellent transfer of energy
Ideal for heat sensitive, explosive or reactive products
Small real estate requirements
Flash tube is flexible, can be routed within plant constraints
Low maintenance - few moving parts
High temperature operation
Limitations:
Loss of power will cause product to fall into dryer base
May cause size reduction due to attrition and impact
High energy costs for fans and dust collection
Products displaying a high degree of bound moisture may not be suitable for this technology
May be susceptible to high wear if improperly accounted for
Technical parameters
| Model | XSG-2 | XSG-4 | XSG-6 | XSG-8 | XSG-10 | XSG-12 | XSG-16 | XSG-20 |
| ID of main machine(mm) | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 |
| Air amount(m3/h) | 350-500 | 1150-2000 | 2450-4500 | 4450-7550 | 7000-12500 | 10000-18000 | 18000-30500 | 50000-78000 |
| Evaporated moisture(kg/h) | 12-17 | 40-70 | 80-150 | 150-250 | 230-420 | 300-600 | 600-1000 | 1000-1500 |
| Max equipped power (kw) | 10 | 20 | 40 | 65 | 85 | 105 | 150 | 230 |
| Max height(m) | 4.0 | 4.8 | 5.8 | 6.4 | 7.1 | 7.8 | 8.5 | 10.1 |
| Occupied area(m2) | 15 | 20 | 28 | 35 | 40 | 52 | 80 | 150 |
Dimension
| Type | Height | Length | Width |
| XSG-4 | 4600 | 5500 | 5000 |
| XSG-6 | 5500 | 6550 | 6000 |
| XSG-8 | 6000 | 7100 | 5600 |
| XSG-10 | 7100 | 8200 | 6700 |
| XSG-12 | 7500 | 8900 | 7000 |
| XSG-14 | 7800 | 10500 | 8500 |
| XSG-16 | 8500 | 14500 | 11000 |
Note: all details above for reference only. Because of material features, the parameters vary. we have the right to change but not notice, pardon!
