| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GK |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Dry Granulator Machine/dry Powder Granulator | Application: | Pellet Making |
|---|---|---|---|
| Structure: | Double Roller | Feature: | Multifunction |
| Process Object: | Dry Powder | Standard: | CE/ROHS/FCC/SGS |
| High Light: | double roller powder granulator machine,100kg/H roller compactor granulator |
||

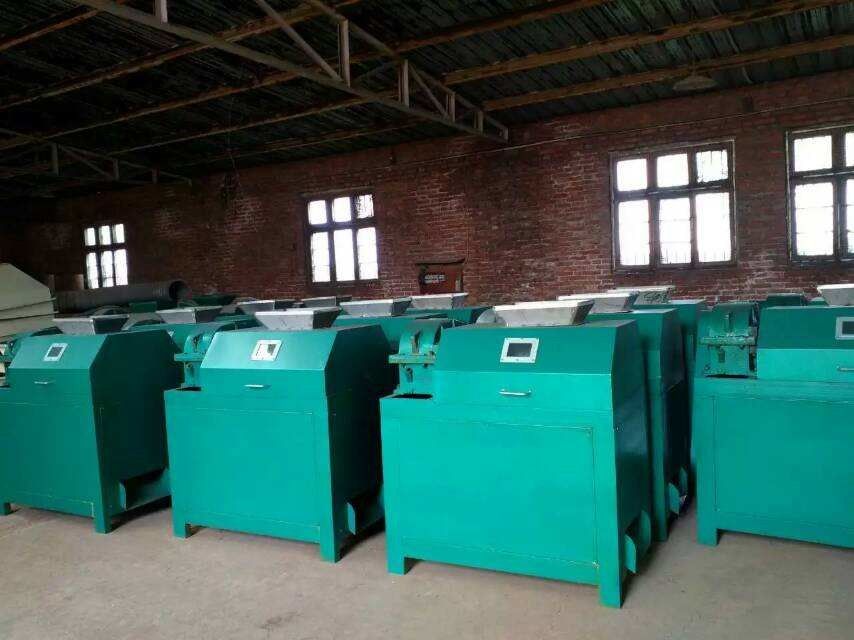

GK 120 multifunction double roller dry powder granulator pellet making
Main uses
GK 120 multifunction double roller dry powder granulator pellet making is a mini granulator for research and development.The formability of the machine can be easily discovered,and the data of scale-up proportion can be obtained by using only nearly 100g powder lot.Besides,roller and propeller can be replaced in a short time,so the machine is convenient for test.
Structure
GK 120 multifunction double roller dry powder granulator pellet making consists of the equipments of dosing, tablet, granulating, sieving, dust extraction, hydraulic station and PLC controlling system. It can be operated by hang or auto.
Introduction
By using the crystallization water in the materials ,the equipment can directly make the powder materials into the grains .it is a kind of new equipment .The structure is rational .The machine is stable and reliable in the performance and easy in maintenance .
The grains to be made can be used for pressed pills ,instant soluble agent ,capsule and etc. The machine is mainly used for the grain making in pharmacy .food, chemical and other industries and it is suitable for the grain making for which the wet method can not settle it .
Pharmacy : grains for pressed pill ,and for capsule filling grains and etc.
Food : grains for food manufacturing ,for seasoning .
Plastics: various plastics shaping grains .
Chemical : catalyst, color, detergent and other grains.
Technical Parameters
| Type | GK-80 | GK-120 |
| Production capacity(kg/h) | 20-60 | 30-100 |
| Fineness of granules(mm) | 0.3-1.5 | 0.3-1.5 |
| Power(KW) | 7.15 | 14 |
| Working pressure(KN) | 198 | 198 |
| Overall dimensions (L*W*H)(mm) | 1540*1230*2325 | 1980*1500*2580 |
| Weight(kg) | 2300 | 3500 |
