| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GK |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Powder Granulation Machine/dry Granulator Machine | Application: | Indoor |
|---|---|---|---|
| Granules Shape: | Pieces Shape | Feature: | No Liquid Needed |
| Process Object: | Dry Powder | Standard: | CE/ROHS/FCC/SGS |
| Highlight: | 7.15KW Pharmaceutical Granulator Machine,dry granulator machine |
||

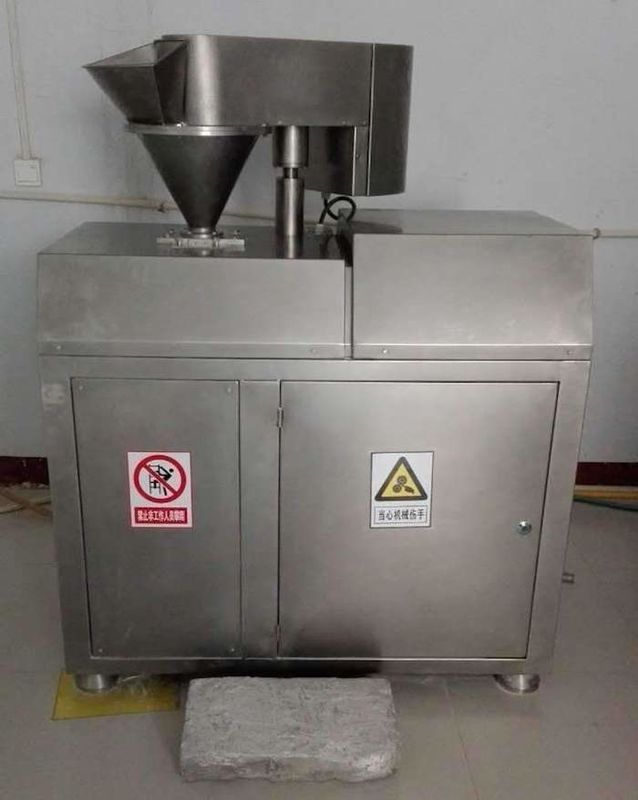

GK Series Indoor Powder Granulation machine for piece shape granules
Description
GK Series Indoor Powder Granulation machine for piece shape granules no need of feeding liquid for table processing is new equipment to make granules directly from the target materials with minimum crystal water, which is widely applied in the pharmacy, foodstuff industry, chemical industry, etc. It’s especially suitable for the granulating of those materials that cannot be done by the wet granulating method. The finished granules from this machine can be made in troches or capsules.
Features
1. new and reasonable structure, reliable and stable property, low noise, easy cleaning and maintained.
2. The density of dry power granule is homogeneous, Its solubility is good. The ratio of granule formed is high. Being adapted special mechanism to feed raw material to adhere roller cann’t be taken place.

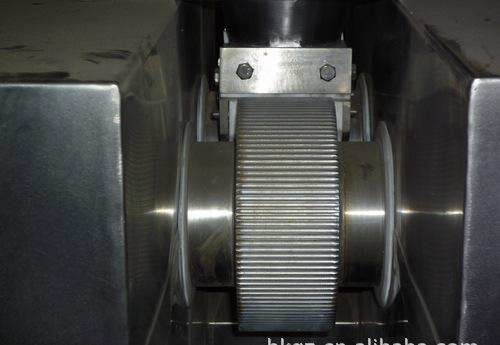

3. Because its roller is cooled through circle water, it guarantees the phenomenon of raw material to adhere roller can not be taken place.
4. GK Series Indoor Powder Granulation machine for piece shape granules no need of feeding liquid for table processing is not necessary to use water or ethanol as humectants and to carry out the second heating and drying. Its procedure is less and its working.
Technical Parameters
| Type | GK-80 | GK-120 |
| Production capacity(kg/h) | 20-60 | 30-100 |
| Fineness of granules(mm) | 0.3-1.5 | 0.3-1.5 |
| Power(KW) | 7.15 | 14 |
| Working pressure(KN) | 198 | 198 |
| Overall dimensions (L*W*H)(mm) | 1540*1230*2325 | 1980*1500*2580 |
| Weight(kg) | 2300 | 3500 |
