| Place of Origin: | China |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GHL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Payment Terms: | T/T or LC at sight |
| Supply Ability: | 20 sets per month |
| Product Name: | High Shear Mixer/high Speed Mixer Granulator | Application: | Powder |
|---|---|---|---|
| Discharging Mode: | By Cylinder | Feature: | Frequency Control |
| Standard: | CE/ROHS/FCC/SGS | Type: | Horizontal Type |
| High Light: | high shear mixer granulator,powder rapid mixer granulator |
||

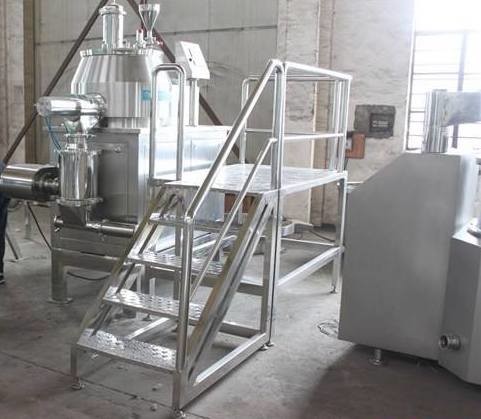

frequency control Horizontal Type High Shear Mixer wet mixer
Frequency Control High Speed Mixer Granulator Horizontal Type High Shear Lab Mixer
Working Principles
In the cylinder (conical) container, powder materials and binder will be mixed into moist soft materials by the mixed paddles at the bottom. Then they will be cut into uniform wet-particles by the side high-speed smashed paddles
Purpose
The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.
Feature and simple introduce
1. frequency control Horizontal Type High Shear Mixer wet mixer is the structure of horizontal cylinder (cone).
2. Full sealed driving shaft, to use water when cleaning.
3. Fluidization granulation, the finished granules are similar to roundness with good liquidity.
4. Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
5. Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
6. All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
7. Whole operation has the strict safety precautions.
Main Characteristics
1) Grains produced by this machine enjoy true-ball sense, good fluidity and homogeneous material, which may effectively boost tablet pressing, improve tablet quality and enhance the capsule filling and thus make the tablets enjoy better brightness, hardness, disintegration and discharge. The production cost is also saved.
2) All the part in contact with materials and the appearance part is made of stainless steel 304.
3) Based on the different features of Chinese and western medicines, wet process mixer granulators are divided into Chinese medicine type and western medicine type.
4) Human-computer interface/PLC control may be configured or exclusion of explosion may be adopted according to the demand of customers.
Technical parameters
| Name | GHL-50 | GHL-150 | GHL-200 | GHL-250 | GHL-300 | GHL-400 | GHL-600 |
| Capacity(L) | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Outpu(kg/batch) | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| Mix speed(r.p.m) | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Mixer power(kw) | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
| Cutting speed(r.p.m) | 1500/3000 | ||||||
| Cutting power(kw) | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
|
Compressed air consumption |
0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
