| Place of Origin: | China |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GHL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Payment Terms: | T/T or LC at sight |
| Supply Ability: | 20 sets per month |
| Product Name: | Rapid Mixer Granulator/high Speed Mixer Granulator | Model: | GHL-250 |
|---|---|---|---|
| Discharging Mode: | By Cylinder | Feature: | Rapid Mixing |
| Standard: | CE/ROHS/FCC/SGS | Type: | Horizontal Type |
| Highlight: | rapid mixer granulator,high shear lab mixer |
||

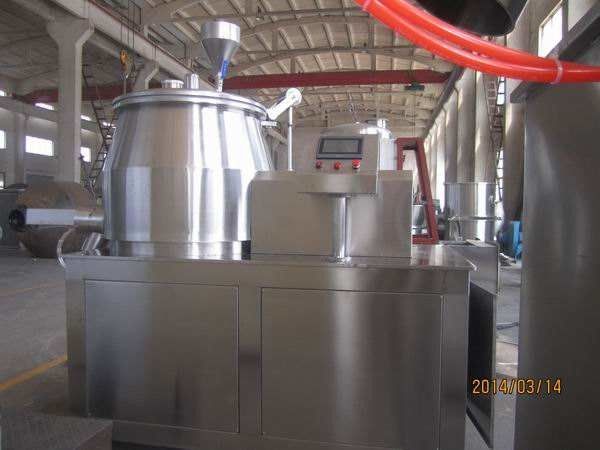

GHL-250 Low type Touch controller horizontal rapid mixer granulator
Low Type Horizontal Rapid Mixing Granulator GHL-250 With Touch Controller
Application
GHL-250 Low type Touch controller horizontal rapid mixer granulator is suitable for pharmaceutical industry, foodstuff industry, chemical industry and so on. The granule is made from powder to damp granule in which the adhesive should be injected in it.GHL Series Horizontal Type High Speed wet Mixing granulator for powder has granulating and mixing function in its one body.
Work principle
1. The process consists of two programs including mixing and granulating.
2. Powder metrical can be charged into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hopper is closed. In the meanwhile, all materials grow up the shape of liquid bridge under continuous effects of conical tank wall. Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turn for loosen. At last , while opening the hoper outlet, waterish particles are pushed off under the centrifugal effects of blade.
3. These soft particles are formed not dependent on forced extrusion effects, more exactly; mainly these small and uniform particles are formed after continuous cutting under the simile-liquid state. in all, this machine can realize the mutual transformation between different materials.
Features
1. With consistent programmed technology ( manmachine interface if option selected ) , the machine can get assured of stability in quality, as well as easy manual operation for convenience of technological parameter and flow progress.
2. Adopt frequency speed adjustment to control the stirring blade and cutter, easy to control the size of particle.
3. With the rotating shaft hermetically filled with air, it can prevent all dust from compact.
4. With a structure of conical hopper tank, all material can be in uniform rotation.The tank is laid with an interlayer on the bottom, in which water cooling circulation system featuring higher thermostatic performance than air cooling system is furnished, which leads to improve the quality of particles.

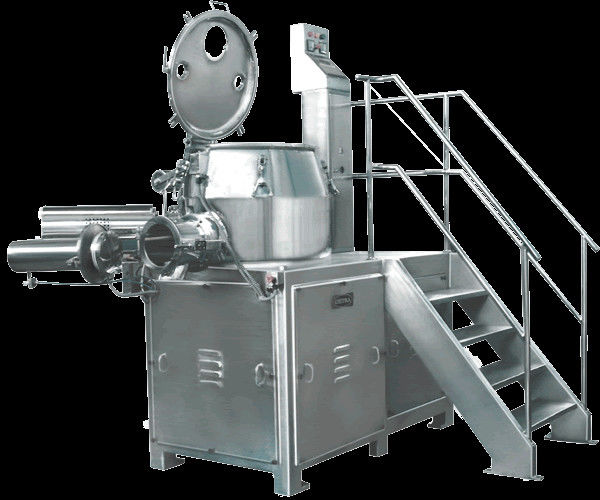

5,With automatic lifting of the pan cover, the tank outlet matching with drying device, self-equipped arm-ladder, it is easy to operate.
6. Mouth of material outlet has changed Into arc-shaped, avoiding up dead spaces.
Technical parameters
| Name | GHL-50 | GHL-150 | GHL-200 | GHL-250 | GHL-300 | GHL-400 | GHL-600 |
| Capacity(L) | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Outpu(kg/batch) | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| Mix speed(r.p.m) | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Mixer power(kw) | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
| Cutting speed(r.p.m) | 1500/3000 | ||||||
| Cutting power(kw) | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
|
Compressed air consumption |
0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
