| Product Name: | Fluid Bed Granulating Equipment/fluid Bed Granulator | Feature: | Multifunctional |
|---|---|---|---|
| Liquid Feeding Mode: | By Feeding Pump | Heating Mode: | Electrical, Oil |
| Liquid Spraying Mode: | Top Spraying | Spraying Gun Type: | Two-fluid |
| Application: | FL 30 Model GMP Approved For Pharmaceutical Industry | ||
| High Light: | powder granulator machine,top spray granulation |
||

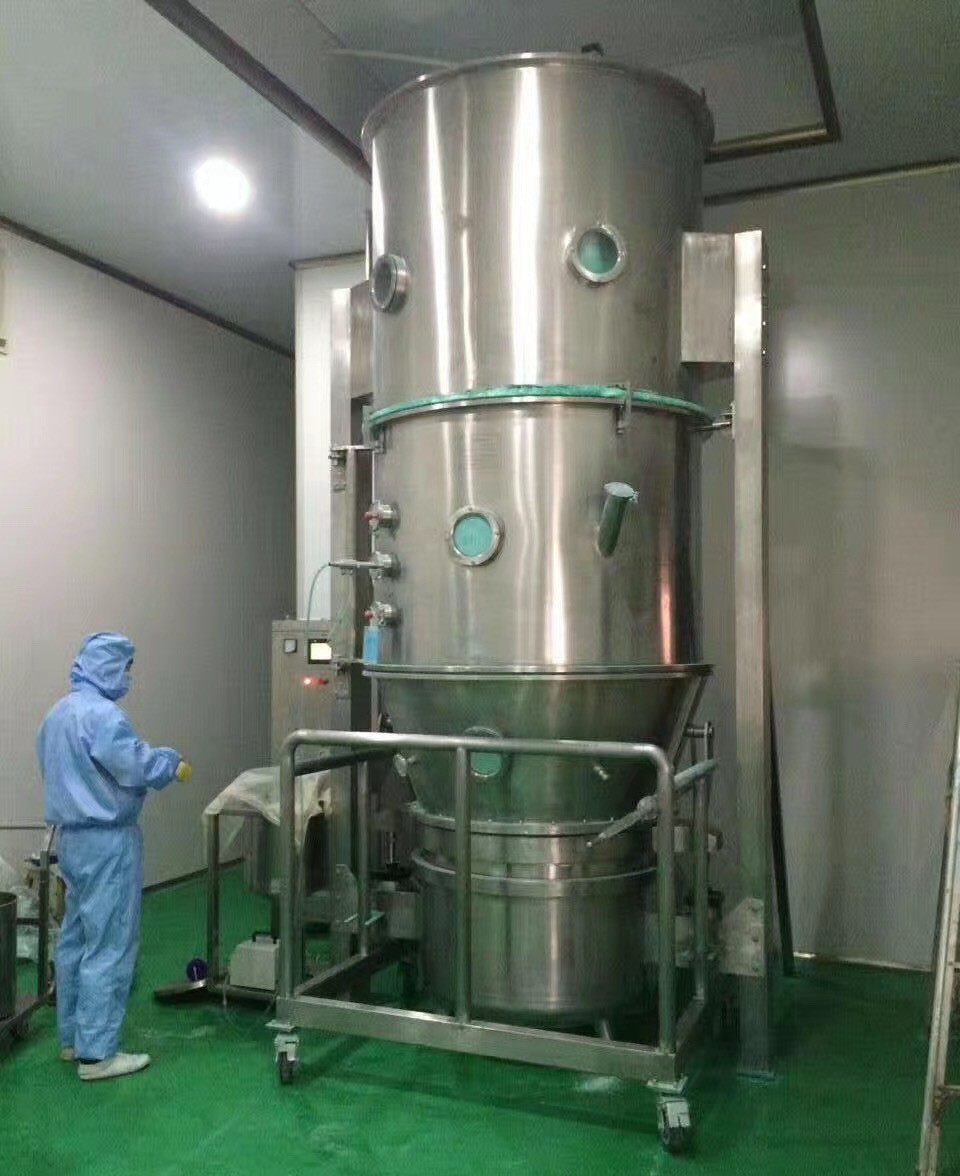

FL 30 model GMP approved for pharmaceutical industry
fluid bed granulator machine for coffee powder, is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
The machine is manufactured in accordance with JB20014-2004 Fluid-bed Granulator In Medicine
Application
fluid bed granulator machine for coffee powder, is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
The machine is manufactured in accordance with JB20014-2004 Fluid-bed Granulator In Medicine
Features
1. Mixing-granulating-drying in one-step.
2.Adopting double chamber filtering bags system, remove dust completely.
3.Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.
4.Can choose 2 bar explosive-proof design
5.Designed, manufactured and laid out by GMP
Working Principle
The Powder granule the container (fluidized bed)appear the state of fluidization. It is preheated and mixed with clean and heated air. At the same the solution of adhesive solvent is fogged and sprayed into the container. It makes the Same particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Flow chart
1. Liquid material tank
2. Feed pump
3. Bottom hopper
4. Air heater
5. Air filter
6. Air valve
7. Suction fan
8. Silencer
9. Lift-up cylinder
10. Container
11. Middle hopper
12. Upper hopper
13. Sight glass
14. Shake cylinder
15. Bag filter
16. Exhaust cylinder
17. Control cabinet
Techinical parameters
| Item | unit | Model | |||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| container | volume | liter | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capability | min | kg/batch | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg/batch | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
|
|
velocity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure | mm H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
| weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | |
| steam pressure | Mpa | 0.3-0.6 | |||||||||
| temperature | ℃ | adjustable at the range from room temperature to 120℃ | |||||||||
| working time | min | decided in accordance with the properties of raw materials | |||||||||
| collect rate | % | ≥99 | |||||||||
| noise | dB(A) | when do installation ,main machine is separated from fan. | |||||||||
| Dimension(L×W×H) | m |
1.0×0.6 |
1.2×0.7 |
1.25×0.9 |
1.6×1.1 |
1.85×1.4 |
2.2×1.65 |
2.34×1.7 |
2.8×2.0 |
3×2.25 |
|
All datas for reference only. According to the material features, we have the right to change but not notice, pardon!
