| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | FL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Fluid Bed Processor | Feature: | Industrial |
|---|---|---|---|
| Liquid Feeding Mode: | Top Spray | Model: | FL 30 |
| Spray Gun: | Two-fluid | Application: | Egg White Powder |
| Highlight: | top spray granulation,fluid bed processor |
||

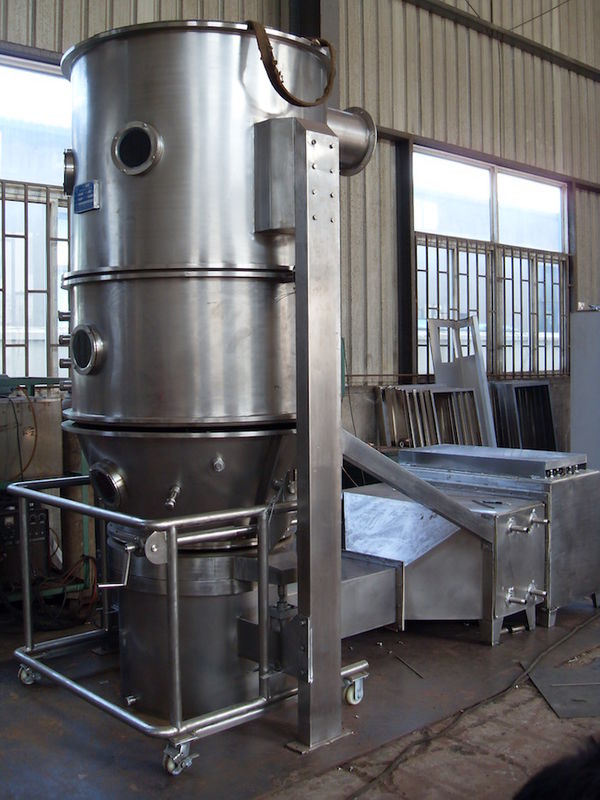

FL model industrial fluid bed processor for egg white powder
Application
FL model industrial fluid bed processor for egg white powder is mainly used for the operations of granulating and drying of granule Top Spraying, etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment
Principle
The powder material is in a boiling state in fluid bed, heated and mixed by filtered hot air. Then spray binder into fluid bed, make the dry powder material agglomerate and become granules. The moisture in granule is evaporated by hot air and binder is solidified. Finally, the ideal, uniform and porous finished granule will be got.
Features
1. Mixing-granulating-drying in one-step.
2. Adopting double chamber filtering bags system, remove dust completely.
3. Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.
4. Can choose 2 bar explosive-proof design
5. Designed, manufactured and laid out by GMP
6. General of applications
7. The machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
8. The machine is manufactured in accordance with JB20014-2004 Fluid-bed Granulator In Medicine
Technical Parameters
| Item | unit | Model | |||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| container | volume | liter | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capability | min | kg/batch | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg/batch | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
|
|
velocity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure | mm H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
| weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | |
| steam pressure | Mpa | 0.3-0.6 | |||||||||
| temperature | ℃ | adjustable at the range from room temperature to 120℃ | |||||||||
| working time | min | decided in accordance with the properties of raw materials | |||||||||
| collect rate | % | ≥99 | |||||||||
| noise | dB(A) | when do installation ,main machine is separated from fan. | |||||||||
| Dimension(L×W×H) | m |
1.0×0.6 |
1.2×0.7 |
1.25×0.9 |
1.6×1.1 |
1.85×1.4 |
2.2×1.65 |
2.34×1.7 |
2.8×2.0 |
3×2.25 |
|
All datas for reference only. According to the material features, we have the right to change but not notice, pardon!
