| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | FL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Fluid Bed Technology/fluid Bed Granulator | Feature: | Auto Feeding |
|---|---|---|---|
| Liquid Feeding Mode: | By Mono Pump | Heating Mode: | Electrical, Steam |
| Liquid Spraying Mode: | Top Spraying | Spraying Gun Type: | Two-fluid |
| Application: | Foodstuff | ||
| High Light: | top spray granulation,fluid bed processor |
||
Auto feeding foodstuff multifunctional Fluid Bed Technology
Applications
Auto feeding foodstuff multifunctional Fluid Bed Technology is mainly used for the operations of granulating and drying of granule Top Spraying, etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment
Principle
The powder material is in a boiling state in fluid bed, heated and mixed by filtered hot air. Then spray binder into fluid bed, make the dry powder material agglomerate and become granules. The moisture in granule is evaporated by hot air and binder is solidified. Finally, the ideal, uniform and porous finished granule will be got.
Features
1. Through powder granulating, material fluidness improved and fewer dust flying.
2. Through powder granulating, its solving property is improved.
3. Mixing, granulating and drying is completed in one step inside the machine .
4. Safe operation because of the antistatic cloth bag filters.
5. The operation personal is not damaged if explosion take place because of the releasing holes.
6. No dead corner. quick and convenient of loading and discharging. It can meet the GMP requirement.
Flow chart
1. Liquid material tank
2. Feed pump
3. Bottom hopper
4. Air heater
5. Air filter
6. Air valve
7. Suction fan
8. Silencer
9. Lift-up cylinder
10. Container
11. Middle hopper
12. Upper hopper
13. Sight glass
14. Shake cylinder
15. Bag filter
16. Exhaust cylinder

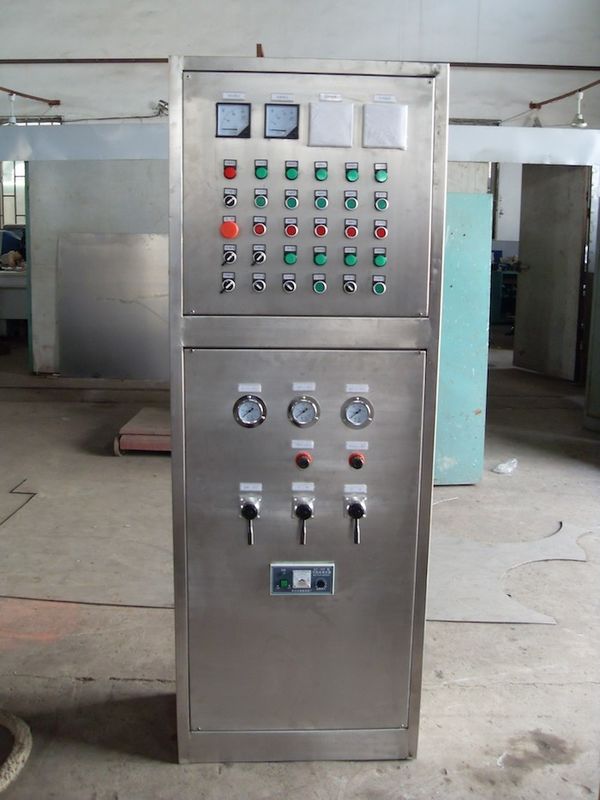

17. Control cabinet
Technical Parameters
| Item | unit | Model | |||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| container | volume | liter | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capability | min | kg/batch | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg/batch | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
| velocity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure | mm H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
| weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | |
| steam pressure | Mpa | 0.3-0.6 | |||||||||
| temperature | ℃ | adjustable at the range from room temperature to 120℃ | |||||||||
| working time | min | decided in accordance with the properties of raw materials | |||||||||
| collect rate | % | ≥99 | |||||||||
| noise | dB(A) | when do installation ,main machine is separated from fan. | |||||||||
| Dimension(L×W×H) | m | 1.0×0.6 | 1.2×0.7 | 1.25×0.9 | 1.6×1.1 | 1.85×1.4 | 2.2×1.65 | 2.34×1.7 | 2.8×2.0 | 3×2.25 | |
All datas for reference only. According to the material features, we have the right to change but not notice, pardon!
