| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | FL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Fluid Bed Granulator / Spray Granulation | Feature: | Top Spray |
|---|---|---|---|
| Liquid Feeding Mode: | By Mono Pump | Heating Mode: | Electrical, Steam |
| Liquid Spraying Mode: | Top Spraying | Spraying Gun Type: | Two-fluid |
| Application: | Sea Food | ||
| Highlight: | powder granulator machine,top spray granulation |
||

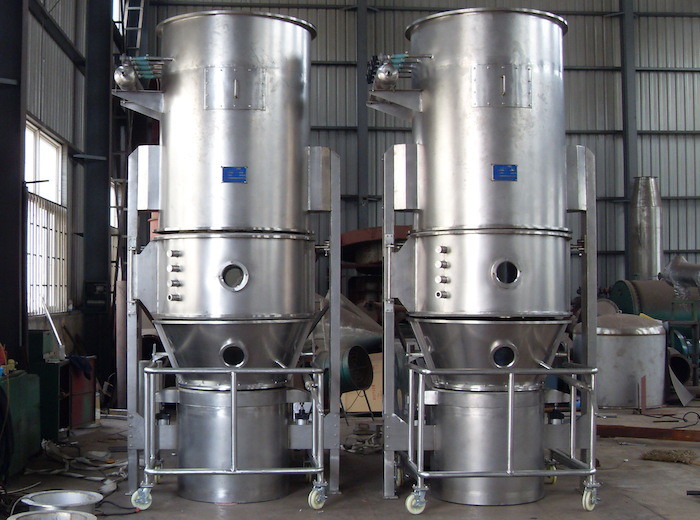

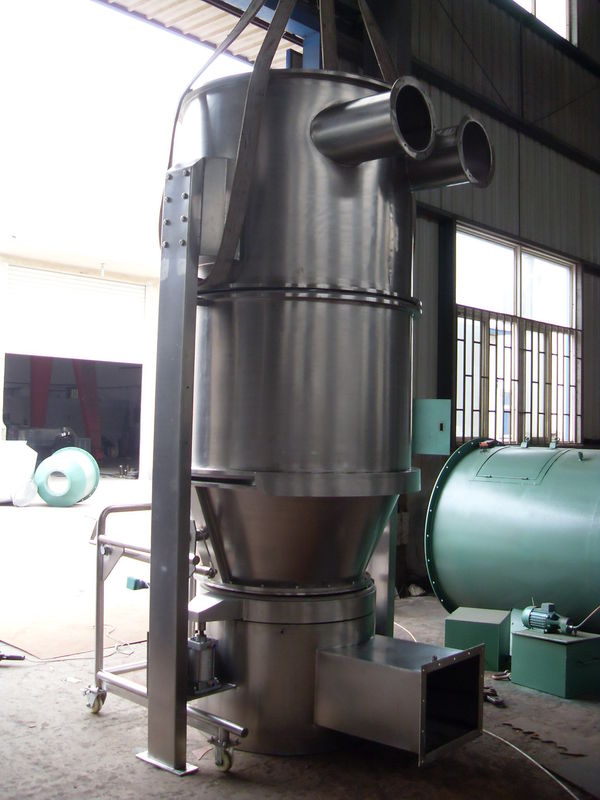

FL model sea food powder fluid bed granulator spray granulation
Working principle
FL model sea food powder fluid bed granulator spray granulation utilizes hot air flow to make the material suspended into fluidized state and be heated quickly, after evaporation. the water will be discharged together with the air flow.The drying speed is very fast ,and the temperture during the drying process can be strictly controlled,
which guarantees the quality of the productions after being dries.
For big granules or lumpish materails, it can be dealt with the horizontally stirring knife, so that it can be dried quickly, meanwhile, the agglomeration state can be avioded. The dreyes works under the sealed negative pressure, the interior surface of it is very smooth; there is no dead conrner in it, which is convenient to be washed and cleaned
Features
1. The mixing,granulating and drying can be completed in one step inside the machine.High mixing
and drying efficient with high uniform product output
2. The operation personal can not be damaged if explosion take place because of the releasing hole;
3. Lifting and Turn-over discharging or vacuum discharging is optional , quick and light and clean.
Meet dust free production requirement of GMP.
4. Adopt PLC control, operation process can be settled and recorded and printed.
5. Equipped with primary, intermediate and advanced three grade filter systems for inlet air and high
precision temperature auto PID control with hot and cold air door.
6. Dehumidifier system and WIP online cleaning system are for option
7. Easy to maintain and cleaning without dead corner
Technical Parameters
| Item | unit | Model | |||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| container | volume | liter | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capability | min | kg/batch | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg/batch | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
|
|
velocity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure | mm H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
| weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | |
| steam pressure | Mpa | 0.3-0.6 | |||||||||
| temperature | ℃ | adjustable at the range from room temperature to 120℃ | |||||||||
| working time | min | decided in accordance with the properties of raw materials | |||||||||
| collect rate | % | ≥99 | |||||||||
| noise | dB(A) | when do installation ,main machine is separated from fan. | |||||||||
| Dimension(L×W×H) | m |
1.0×0.6 |
1.2×0.7 |
1.25×0.9 |
1.6×1.1 |
1.85×1.4 |
2.2×1.65 |
2.34×1.7 |
2.8×2.0 |
3×2.25 |
|
All datas for reference only. According to the material features, we have the right to change but not notice, pardon!
