| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | YPG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Spray Dryer Price | Spraying Mode: | Pressure |
|---|---|---|---|
| Feature: | Granulation | Product Size: | 1mm |
| Application: | Compound Fertilizer | ||
| High Light: | 24KW Pressure Spray Dryer,granulation spray drying machine |
||

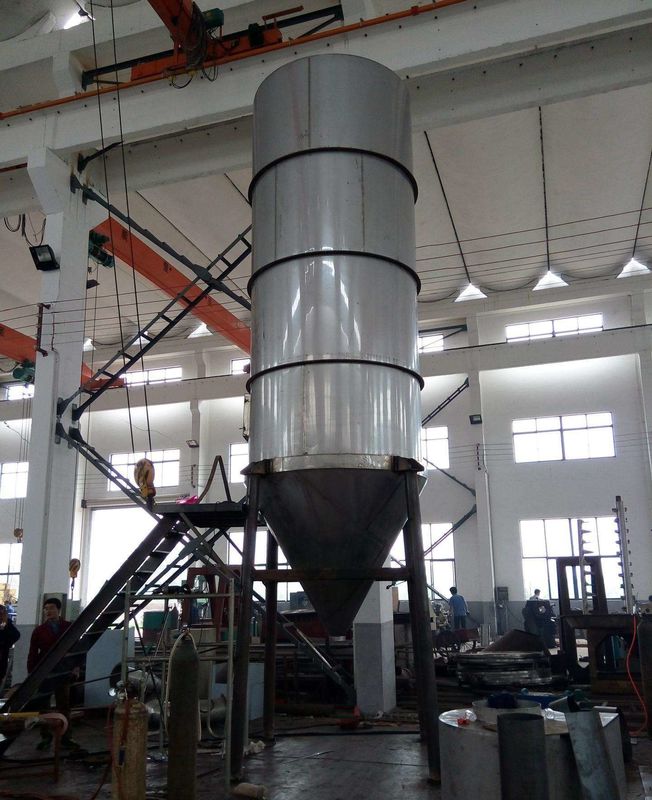

Compound fertilizer pressure spray dryer price granulation machine
Application
Compound fertilizer pressure spray dryer granulation machine is broadly used in food, pharmaceutical, chemical, dye, ceramics, biological, pesticide, plastics and other industries. The following are some specific applications
Spray Drying Granulation
Chemical industry: organic catalyst, resin, synthetic detergent, oil, thiamine, dye intermediate, white carbon black, graphite and ammonium phosphate.
Food: amino acid, spices, protein, starch, dairy products, coffee extracts, fish meal and so on
Pharmaceuticals: Chinese patent medicine, pesticide, antibiotic and dissolved medicines
Ceramics: magnesium oxide, porcelain clay, all kinds of metal oxide, dolomite, etc.
Spray Granulation:
Fertilizers, alumina, ceramic powder, heavy metal, granulous detergent and Chinese patent drug
Spray Cooling Granulation:
Aliphatic acid, paraffin, olein and oil
In addition, our spray drying machine can also be used in the fields of spray crystallization, spray concentration and spray reaction.
Features of Pressure Spray Dryer
1. The characteristics of this spray drying machine include fast drying speed, high dust collection rate and energy conservation.
2. The dried products are in the shape of spherical particles, with uniform particle size, good fluidity and solubility, high purity and superior quality.
3. With wide range of applications, this pressure spray dryer can not only implement hot air drying and granulation, but also conduct cooling granulation, spray crystallization and spray reaction.
4. Compound fertilizer pressure spray dryer price granulation machine is easy to operate and maintain. It is also easy to realize automatic operation.
Technical parameters
| Model | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Evaporated amount(kg/h) | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| d(mm)ΦxH | 1200x8900 | 1800x11500 | 2200x13500 | 2400x14800 | 2800x15400 | 3400x18800 | 4600x22500 |
| Power(KW) | 8.5 | 14 | 22 | 24 | 30 | 40 | 82 |
| Inlet air temperature(°C) | 300-350 | ||||||
| Water content(%) | <5(can reach to 0.5%) | ||||||
| Yield(%) | >97 | ||||||
| Heating by Electricity(KW) | 75 | 120 | |||||
| Evaporation and Electricity(Mpa+KW) | 0.5+54 | 0.6+90 | 0.6+108 | Temperature is below 200°C,calculating in accordance with pratical situation | |||
| Furnace(Kcal/h) | 150000 | 300000 | 300000 | 400000 | 600000 | 1000000 | 1500000 |
