| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | LPG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Centrifugal Spray Dryer | Processing Object: | Animal Blood |
|---|---|---|---|
| Feeding Mode: | By Mono Pump | Discharging Mode: | From Cyclone |
| Dust Elimination For Optional: | Bag Filter Or Water Film Scrubber | Controller: | Touch Screen |
| High Light: | 18000rpm lab spray dryer,Centrifugal spray drying machine |
||

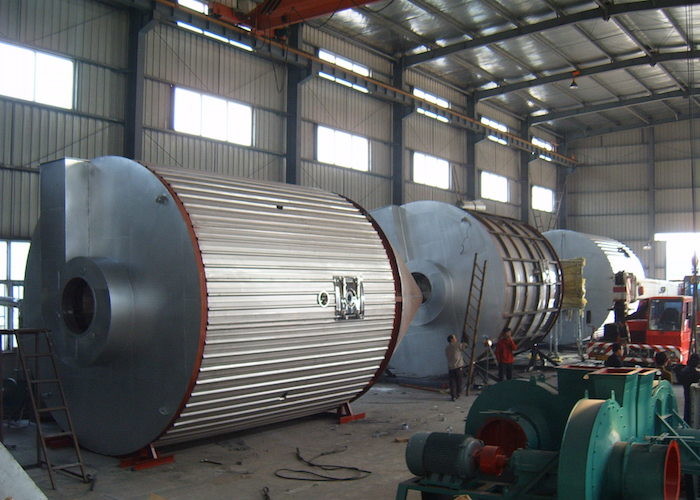

Animal blood High Speed centrifugal Spray Dryer with touch screen
Application
Animal blood High Speed centrifugal Spray Dryer with touch screen is widely used in the liquid technology shaping and in the drying industry. It is most suitable for producing powdered or granular solid products from liquid state materials such as solution, emulsion, suspension, and pumpable pastes. So, when the size distribution, residual water contents, stacking density and shape of final products must reach a certain precision standard, the spray drying is one of the most desired technologies.
Principle of work
Animal blood High Speed centrifugal Spray Dryer with touch screen is gas-liquid co-current flow drying equipment, using high-speed centrifugal atomizer, the liquid will be atomized into fine droplets, then mix with the hot air from the distributor in the dryer, heat and mass transfer exchanges rapidly during the mixing process. In a very short period of time the liquid become dry powdered products. Production control and product quality control is convenient and reliable. It is widely used in the drying production of different types of liquids materials.
Features
1.Fine droplets are dried in the drying camber by supplying hot air through the inlet.
2.The surface of the liquid drop is dried immediately to form a tough shell.
3.Further the liquid inside must escape by diffusing through the shell at a particular rate.
4.At the same time heat transfer from outside to inside takes place at a rate greater than liquid diffusion rate.
5.As a result heat inside mounts up which allows the liquid to evaporates at faster rate.
Technical Parameters
| Specification | LPG5 | LPG25 | LPG50 | LPG100 | LPG150 | LPG200-3000 | ||
| Inlet temperature | ≤ 350°C | |||||||
| Outlet temperature | 80-90°C | |||||||
| Evaporating rate (kg/h) | 5 | 25 | 50 | 100 | 150 | 200-3000 | ||
| Rotating speed(rpm) | 25000 | 22000 | 21500 | 18000 | 18000 | 15000 | ||
| Dia. of atomizing tray(mm) | 50 | 120 | 120 | 120 | 150 | 180-340 | ||
| Heat source | Electricity | Electricity | Electricity+ steam, oil fuel, gas, or coal | |||||
| Electrical-heating power | 9 | 45 | 60 | 81 | 99 | ------------- | ||
| Dry powder Yield | ≥ 95 | |||||||
|
|
A(mm) | 1000 | 1290 | 1730 | 2500 | 2800 |
|
|
| B(mm) | 2100 | 3410 | 4245 | 5300 | 6000 | |||
| C(mm) | 2300 | 4260 | 4645 | 6000 | 6700 | |||
| φ D(mm) | 1060 | 1800 | 2133 | 2560 | 2860 | |||
| E1(mm) | 1050 | 1200 | 1640 | 2100 | 2180 | |||
| E2(mm) | 1050 | 1200 | 1640 | 2100 | 2180 | |||
| F(mm) | 750 | 1000 | 1250 | 1750 | 1970 | |||
| G(mm) | 530 | 1700 | 1750 | 1930 | 2080 | |||
| H(mm) | 530 | 1300 | 1800 | 2600 | 3050 | |||
| I(mm) | 530 | 1550 | 1600 | 1780 | 1960 | |||
Spray Drying Stages
1. Atomizing: by atomizer, feed liquid is dispersed into even fog drops.
2. Contact of fog drops and hot air: through air distributor, hot air enters into drying chamber, fully mixing with fog drops and moves at a certain rule(the contact way can be co-current flow, adverse current, mixed flow)
3. Drying process: fog drops has big surface area, and appears obvious ”grades” to hot air both in temperature and humidity, thus strengthen the transmission process of “plastid caloric” moisture of fog drops is evaporated very quick(within seconds to tens of seconds)
