| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | FG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 20sets per month |
| Product Name: | Fluidized Bed Dryer/fluid Bed Dryer | Application: | Pharmaceutical |
|---|---|---|---|
| Feature: | High Efficiency | Dryer Shape: | Vertical |
| Dryer Type: | 300 | Special Design: | With Stirring Paddle |
| High Light: | fluid bed equipment,fbd dryer |
||

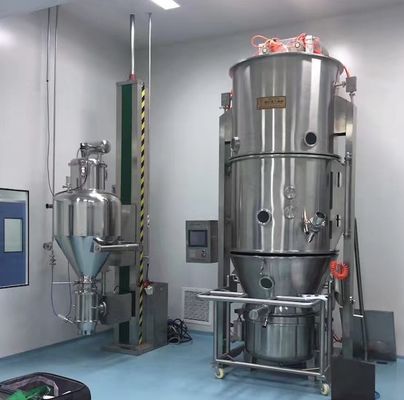

300 model auto feeding Fluidized bed Dryer for foodstuff drying
Scope of application
1. Use screw to extrude and vibrate granule and granulate the granule with the method of humidity, high speed and mixing
2. Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feed stuff, chemical industries and so on
3. The raw material that large in granule and small in block and having adhesive property
4. Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.
Principle
When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Features
1, The structure of fluidization bed is round so as to avoid the dead angle
2, Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow
3, The granule is discharged through the method of turning over. In this way it is very convenient. The discharging system can be designed as required too
4, It is operated at the condition of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP.
5, The drying speed is fast and the temperature is uniform. In general, the drying time is 15-45 minutes each batch
Technical Parameters
| Item | unit | Model | ||||||||
| 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| container | volume | liter | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capability | min | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg/batch | 4.5 | 6 | 45 | 90 | 160 | 300 | 450 | 750 | |
| fan power | kw | 3 | 4 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| steam consumption | kg/h | 15 | 23 | 70 | 141 | 211 | 282 | 366 | 451 | |
| Compressed-air consumption | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 1.1 | 1.6 | |
| temperature | ℃ | adjustable at the range from room temperature to 120℃ | ||||||||
| working time | min | decided in accordance with the properties of raw materials | ||||||||
| collect rate | % | ≥99 | ||||||||
| noise | dB(A) | <75 | ||||||||
| Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4400 | |
All data for reference only. According to the material features, we have the right to change but not notice, pardon!
