| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GFG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Fluidizing Drying Machine/fluid Bed Dryer | Feature: | Space Saving |
|---|---|---|---|
| Application: | Pharmaceutical Powder | Feeding Mode: | Automatic Feeding |
| Heater: | Steam Heater | Working Type: | Batch Type |
| Highlight: | Powder Fluidized Spray Dryer,steam heater fluid bed dryer |
||

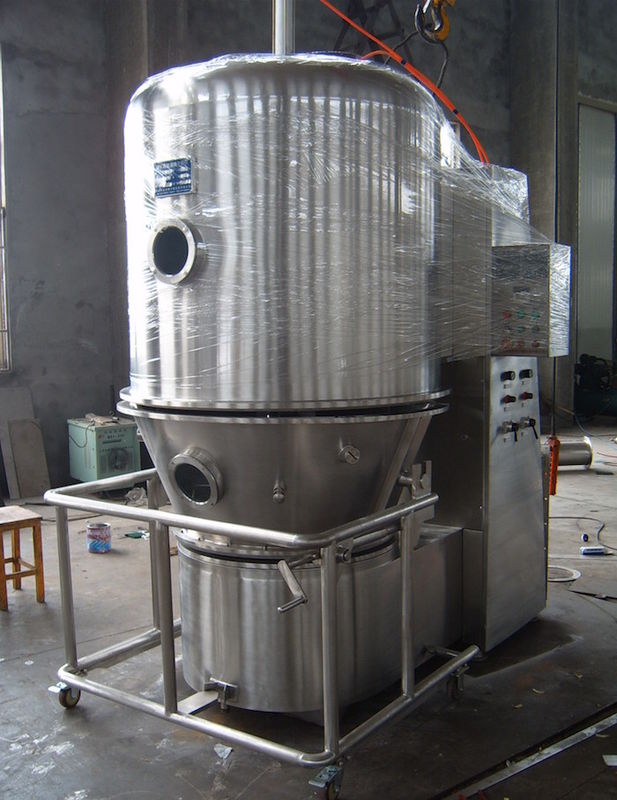

space saving Pharmaceutical Powder fluidizing drying machine with steam heater
Applications
space saving Pharmaceutical Powder fluidizing drying machine with steam heater is suitable for medicine, food, feed, chemical industry and so on, suit for drying the powder which has good fluidity
Principle
When air is purified and heated, space saving Pharmaceutical Powder fluidizing drying machine with steam heater is introduced from the bottom of exhaust fan and passes through screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and raw material is dried quickly
Features
1. The structure of fluid bed is of round so as to avoid dead corner.
Inside the hopper there is a stir in order to avoid agglomeration of raw material and forming canal of flow. (Small machine does not support stirrer)
2. The granule is discharged through the method of turning over. In this way, it is very convenient and quickly. Discharging system can be designed by requirement.
3. space saving Pharmaceutical Powder fluidizing drying machine with steam heater is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in cleaning. It is ideal equipment that is in conformity with the requirement of GMP.
4. The drying speed is fast and temperature is uniform. In general the drying time is 20-30 minutes.
Technical parameters
| Item | Unit | Specification | ||||||||
| Feeding capacity | kg /batch | 60 | 100 | 120 | 150 | 200 | 300 | 500 | ≥800 | |
| Power of fan | kw | 11 | 15 | 18.5 | 22 | 22 | 30 | 37 | By URS | |
| Stirring power | kw | 0.55 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
| Stirring speed | rpm | 11 | ||||||||
| consumption of steam | kg/h | 141 | 170 | 170 | 240 | 282 | 366 | 451 | ||
| working time | min | 15-40(Decided according to raw material | ||||||||
| Height of main machine | Square | mm | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 | |
| Round | mm | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 | ||
All datas are for reference only. According to the features of material, our factory has the right change but not notice, pardon!
