| Features: | Solvent Recovery | Product Name: | Vacuum Drying Chamber |
|---|---|---|---|
| Processing Object: | Powder Or Granules Drying | Special Construction: | Sintered Filter |
| Related Device For Optional: | Steam Heater | Connection Type: | By Rotating Joint |
| High Light: | Explosion Proof rotary cone vacuum dryer |
||

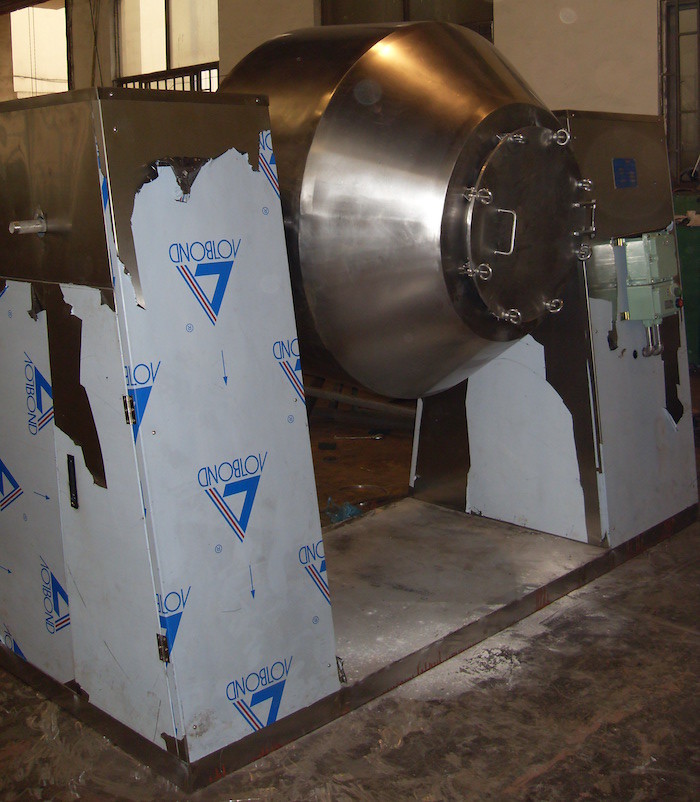

SZG-500L steam heater small rota-cone vacuum dryer with sintered filter
Small Rotary Cone Vacuum Drying Equipment SZG-500L Steam Heater With Sintered Filter
Enamel or titanium tank for special matrial can be choosed.
Principle of Working
SZG-500L steam heater small rota-cone vacuum dryer with sintered filter has double cone rotating tank. Under the state of vacuum inside the tank, pass steam or hot water into its jacket for heating. The hot amount can contact with the damp raw material through its inner wall. The vaporized steam when the damp raw material absorbed heat can be pumped out through vacuum exhaust pipe. Because its inner of tank is in the state of vacuum and the raw material is turned over all the time caused by the rotating of tank, the dry speed of raw material is quickened and dry efficiency is raised too and the purpose of uniform dry can be raised.
| Optional Features : |
|
l Option for advance PLC Controls with HMI touch screen.. l Option for Flame Proof Electrical. l Option for lump breaker. l Option for condenser, Receiver & Cyclone for solvent recovery. l Option for heating media steam/ hot water / hot oil. |
Application
SZG-500L steam heater small rota-cone vacuum dryer with sintered filter is suitable for
1. Material that cannot undertake high temperature.
2. Material that is easy to oxidize.
3. Material that do not permit to destruct.
4. To recover material with residual volatile.
5. Material with vigorous irrelative and toxicity.
6. Biology products and mine.
7. Dry raw materials of pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry and biochemistry at low temp etc.
Technical Parameters
| Model | SZG100 | SZG350 | SZG500 | SZG-7500 | SZG1000 | SZG1500 | SZG2000 | SZG3500 | SZG5000 |
| Volume (litre) | 100L | 350L | 500L | 750 | 1000L | 1500L | 2000L | 3500 | 5000 |
| Charging volume (L) | 50 | 175 | 250 | 375 | 500 | 750 | 1000 | 1750 | 2500 |
| Loading weight(kg) | 40 | 120 | 200 | 300 | 400 | 600 | 800 | 1000 | 1800 |
| Heating area(m2) | 1.16 | 1.5 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 13.8 |
| Rotating speed(rpm) | 3~13 | ||||||||
| Motor power | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 |
| Rotating height | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4200 |
| Desigh pressure insider the tank: ---0.1~0.15Mpa | |||||||||
| Desigh pressure inside the jacket: ≤0.3Mpr | |||||||||
| Total weight (Kg) | 650 | 900 | 1200 | 1450 | 1970 | 2280 | 2500 | 2700 | 2900 |
Notes : 1. The above-mentioned parameters are calculated based on material density 0.6g./cm3.if for reference only.
2. For raw material, if its volume has great change before and after dry, then its filling coefficient may be increased or decreased suitably.
3. Speed adjusting motor of 0~6rpm for optional according to user’s requirement.
The following aspects should be point when order
If certificate for pressure vessel is requirement, please point out.
if glass lining for interior surface is requirement, please point out.
If the material is explosive, or flammable, the calculation should be made according to trial result.1. If material has larger specific weight, it shall be noted upon placing the order.
