| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | FZG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Product Name: | Vacuum Drying | Model: | FZG-15 |
|---|---|---|---|
| Drying Type: | Static | Application: | Lab Use |
| Tray Number: | 32 Trays | Heating Resource: | Conduct Oil |
| Highlight: | Foodstaff Static Vacuum Tray Dryer |
||
FZG-15 32 trays conduct oil heater vacuum drying with vacuum pump

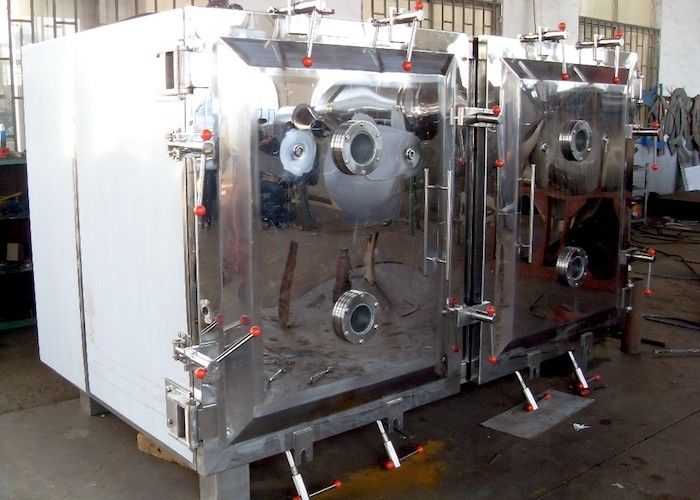

Conducted Oil Heater Vacuum Drying Oven , 32 Trays Vacuum Tray Dryer FZG-15
this vacuum drying oven with 4 trays,6 trays or 8 trays for optional.
Description:
It is easy to resolve for the high temperature, the low temperature of getting together and rotten temperature sensing suppliers is dry, widely adopted in such trades as pharmacy, chemical industry, food, electron, etc.
Application:
What is called vacuum is dry, in the dry supplies the vacuum condition, heat drily, utilize the vacuum pump is to smoke to angrily wetly, has acceleartated the dry speed.
Features:
1. The boiling point of the supplies solution is reduced under the vacuum, make the heat transfer motive force of the evaporimeter increase, so can save the area of heat transfer of the evaporimeter to certain biography heat.
2. The heat source that the evaporation operates can adopt low-voltage steam or the used heat and steam.
3. There is few loss of heat of evaporimeters.
Technical Parameters
| Model | FZG-10 | FZG-15 | FZG-20 |
| Size of baking tray (mm) | 460×640×45 | 460×640×45 | 460×640×45 |
| Quantity of baking trays | 20 | 32 | 48 |
|
Work pressure inside the pipe of baking support (MPa) |
≤0.784 | ≤0.784 | ≤0.784 |
|
operation temperature of baking support (℃) |
35-150 | 35-150 | 35-150 |
| vacuum degree inside the chamber when operation idle(MPa) | -0.1 | -0.1 | -0.1 |
|
Under -0.1Mpa and 110℃, water evaporation rate (kg/m2 ·hr) |
7.2 | 7.2 | 7.2 |
| vacuum pump with condenser pump | 2X-70A-5.5KW | 2X-70A-5.5KW | 2X-90A-7.5KW |
| vacuum pump without condenser | SZ-2-4KW | SZ-2-4KW | SZ-2-5.5KW |
| Weight of drying chamber(kg) | 1400 | 2100 | 3200 |
| Inter size of chamber(mm) | 1500×1060×1220 |
1500×1400x1220
|
1500×1800x1220
|
| Outer size of chamber(mm) | 1924×1720x1513 | 1513×1924x2060 | 1924×2500x1513 |
