| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | SZG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30sets per month |
| Features: | Vacuum Pump | Product Name: | Rotary Vacuum Dryer |
|---|---|---|---|
| Processing Object: | Powder Or Granules Drying | Special Construction: | Enamel Or Titanium |
| Related Device For Optional: | Heating Tank, Condenser，vacuum Pump, Buffer Tank | Connection Type: | By Rotating Joint |
| High Light: | Explosion Proof rotary cone vacuum dryer |
||

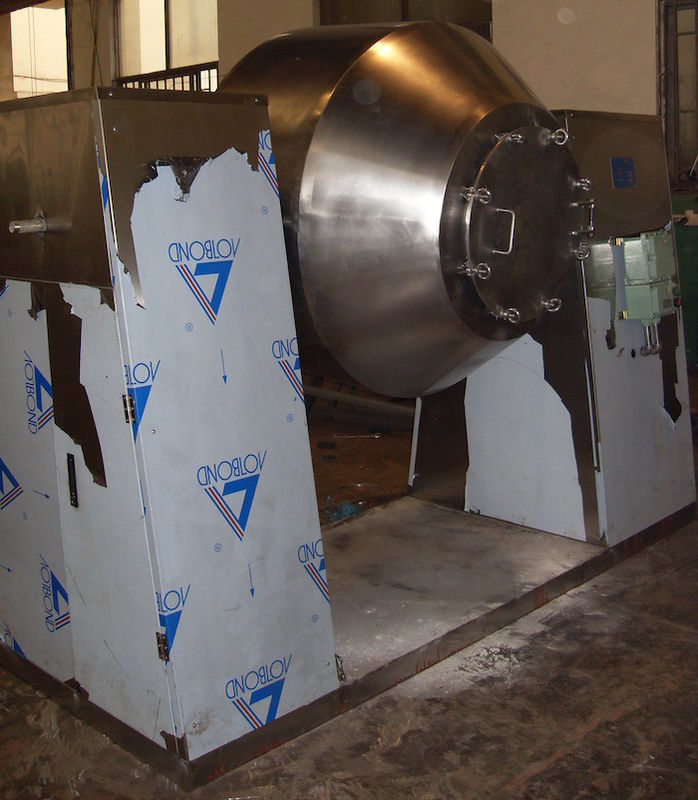

explosion proof double cones rotary vacuum dryer with vacuum pump
Enamel or titanium tank for special matrial can be choosed.
Principle of Working
explosion proof double cones rotary vacuum dryer with vacuum pump has double cone rotating tank. Under the state of vacuum inside the tank, pass steam or hot water into its jacket for heating. The hot amount can contact with the damp raw material through its inner wall. The vaporized steam when the damp raw material absorbed heat can be pumped out through vacuum exhaust pipe. Because its inner of tank is in the state of vacuum and the raw material is turned over all the time caused by the rotating of tank, the dry speed of raw material is quickened and dry efficiency is raised too and the purpose of uniform dry can be raised.
Features
1. Mixing and drying at the same time. Compensator equipped for optional is used for solvent recover.
2. Advanced in design, simple in inner structure, easy for clean, able to discharge all raw material, convenient in operation, lowing labor intensity and improving work environment.
3. Meanwhile raw material is rotating accompanying with the rotating of container, the wall of container cannot accumulate raw material. Therefore, its coefficient of thermal transmission is high and quick drying speed.
Application
explosion proof double cones rotary vacuum dryer with vacuum pump is mainly used for drying following matters in medicine, chemical and food industries:
1. Matters which cannot resist high temperature.
2. Matters which are easily oxidized.
3. Matters with crystals which should not be retrieved.
Technical Parameters
| Model | SZG100 | SZG350 | SZG500 | SZG-7500 | SZG1000 | SZG1500 | SZG2000 | SZG3500 | SZG5000 |
| Volume (litre) | 100L | 350L | 500L | 750 | 1000L | 1500L | 2000L | 3500 | 5000 |
| Charging volume (L) | 50 | 175 | 250 | 375 | 500 | 750 | 1000 | 1750 | 2500 |
| Loading weight(kg) | 40 | 120 | 200 | 300 | 400 | 600 | 800 | 1000 | 1800 |
| Heating area(m2) | 1.16 | 1.5 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 13.8 |
| Rotating speed(rpm) | 3~13 | ||||||||
| Motor power | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 |
| Rotating height | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4200 |
| Desigh pressure insider the tank: ---0.1~0.15Mpa | |||||||||
| Desigh pressure inside the jacket: ≤0.3Mpr | |||||||||
| Total weight (Kg) | 650 | 900 | 1200 | 1450 | 1970 | 2280 | 2500 | 2700 | 2900 |
Notes : 1. The above-mentioned parameters are calculated based on material density 0.6g./cm3.if for reference only.
2. For raw material, if its volume has great change before and after dry, then its filling coefficient may be increased or decreased suitably.
3. Speed adjusting motor of 0~6rpm for optional according to user’s requirement.
The following aspects should be point when order
If certificate for pressure vessel is requirement, please point out.
if glass lining for interior surface is requirement, please point out.
If the material is explosive, or flammable, the calculation should be made according to trial result.1. If material has larger specific weight, it shall be noted upon placing the order.
