| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | ZB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Product Name: | Vacuum Drying Equipment/harrow Dryer | Feature: | Stirring Rod |
|---|---|---|---|
| Inner Structure: | Harrow Type | Drying Type: | Dynamic |
| Application: | Paste | Sealing: | Mechanical Seal |
| Highlight: | Chemical Paste Rotary Vacuum Dryer |
||

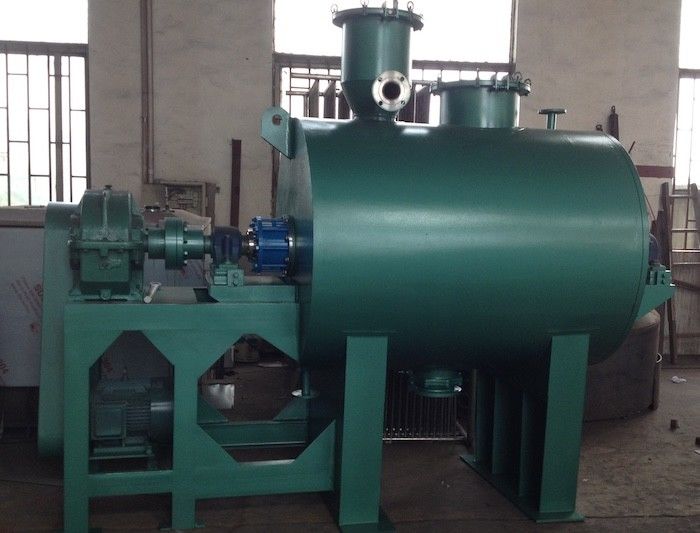

5000 Litre Vacuum Drying Equipment Harrow Dryer Stirring Rod With Heating Jacket
exported 5000 litre vacuum type harrow dryer stirring rod with heating jacket
Features
1. Being installed stirring in the machine, pulpiness, paste-like mixture or powder raw materials can be dried easy.
2. Using the newest Two-stage type reducer to reduce power consumption while increasing the torque.
Principle
exported 5000 litre vacuum type harrow dryer stirring rod with heating jacket is an innovation horizontal batch-type vacuum dryer. The moisture of wet material will be evaporated by heat transmission. The stirrer with squeegee will remove material on hot surface and move in the container to form cycle flow. The evaporated moisture will be pumped out by vacuum pump.
Applications
The following raw materials from pharmaceutical industry, foodstuff industry, chemical industry and so on can be dried.Suitable for pulpiness, paste-like mixture or powder raw materials.
Thermal sensitive raw materials having the requirement to dry at lower temperature.
Technical Parameters
| Item | ZB-500 | ZB-750 | ZB-1000 | ZB-1500 | ZB-2000 | ZB-3000 | ZB-5000 |
| Working volume( L) | 300 | 450 | 600 | 900 | 1200 | 1800 | 3000 |
| inner cylinder size | ф600х1500 | ф800х1500 | ф800х2000 | ф1000х2000 | ф1000х2600 | ф1200х2600 | ф1400х3400 |
| Power | 4 | 5.5 | 5.5 | 7.5 | 11 | 18.5 | 22 |
| Stirring speed | 5~25 | 5~12 | 5 | ||||
| pressure of jacket | ≤0.3 | ||||||
| Inner Pressure | -0.09~-0.096 | ||||||
Note: The evaporated amount of water its related to the characteristics of raw materials and the drying temperature .Data above only for reference. we have the right to change but not notice, pardon!
