| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | CT,CT-C |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Industrial Ovens / Industrial Drying Equipment | Feature: | Pharmaceutical |
|---|---|---|---|
| Construction: | 304SS | Application: | Most Material |
| Heat Resource: | Electric / Steam | Drying Type: | Hot Air Circulation |
| High Light: | rotary drum dryer,industrial flash dryer |
||

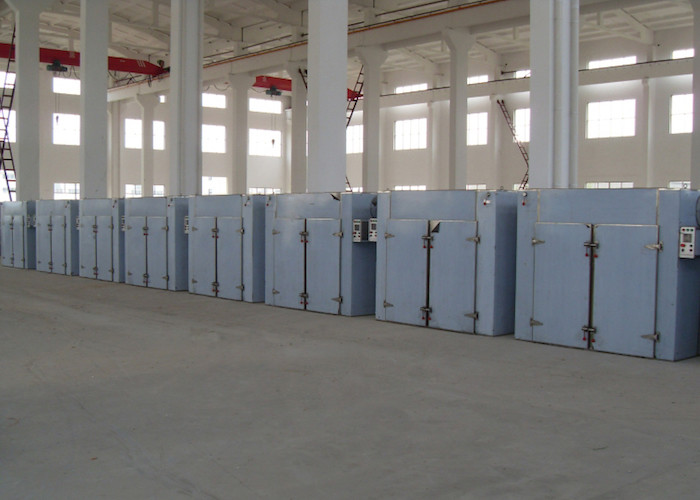

4 trolleys 96 trays Pharmaceutical industrial ovens made of 304SS
4 Trolleys 96 Trays Industrial Dryer Machine , 304SS Industrial Drying Oven
Feature
1. Most of hot air circling inside the oven. High thermal efficiency. Saving energy source.
2. Enhanced ventilation and adjustable air divider plate inside the oven. Raw materials can be dried evenly.
3. The heat source can be steam, hot water, electricity ,heat-conducting oil or hot air from furnace.
4. Low noise and stable operation. Automatical temperature control.
5. Convenient installation and maintenance.
6. Widely applications .Almost suitable for all kinds of raw materials.
Application
4 trolleys 96 trays Pharmaceutical industrial ovens made of 304SS is suitable for heating and solidification, drying and dehydration of raw materials in pharmaceutical industry, chemical industry, foodstuff industry, agricultural and sideline products, aquatic products, light industry, heavy industry and so on. The raw materials can be medicine of raw materials, Chinese traditional medicine, and tablet of drink, immersed electuary, powder, granule, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements, drying varnish and so on.
Main technical parameters and relevant explanation
1. heat source can be steam, electricity, heat-conducting oil or steam + electricity.
2. Temperature of operation: 50-140℃ for steam. Maximum temperature will be 150℃.
3. 50-350℃ for electricity or heat-conducting oil.
4. Automatic and computer control systems for customer selection.
5. The normal pressure of steam will be 0.2-0.8 MPa(2-8kg/cm2).
6. If have special requirement, please indicate it in order.
7. The price of non-standard oven shall be discussed additionally.
8. Standard drying tray: 640LX460WX45H(mm).
9. Standard trolley:950LX710X1510,12 layers,2 pc of trays for each layer. For other kind of trays or trolleys, to be discussed.
Technical Parameters
| Model | Drying area | Capacity (kg/batch) | Fan power (kw) |
Steam consumption (kg/h) |
Radiation area(m2) | Electrical heater power(kw) | Overall dimension L,W,H(mm) | Door | Trolley | Tray | weight (kg) |
| CT-C-O | 7.1 | 60 | 0.45 | 10 | 10 | 6 | 1200×1000×1750 | 1 | 1 | 24 | 820 |
| CT-C-1 | 14.1 | 120 | 0.45 | 18 | 20 | 15 | 2300×1200×2000 | 2 | 2 | 48 | 1580 |
| CT-C-1A | 14.1 | 120 | 0.45 | 18 | 20 | 15 | 1200×2200×2000 | 1 | 2 | 48 | 1580 |
| CT-C-2 | 28.3 | 240 | 0.45×2 | 36 | 40 | 30 | 2300×2200×2000 | 2 | 4 | 96 | 1800 |
| CT-C-2A | 28.3 | 240 | 0.45×2 | 36 | 40 | 30 | 4460×1200×2290 | 4 | 4 | 96 | 1880 |
| CT-C-3 | 42.4 | 360 | 0.45×3 | 54 | 80 | 45 | 3430×2200×2000 | 3 | 6 | 144 | 2100 |
| CT-C-3A | 42.4 | 360 | 0.45×3 | 54 | 80 | 45 | 2300×3200×2000 | 2 | 6 | 144 | 2210 |
| CT-C-4 | 56.5 | 480 | 0.45×4 | 72 | 100 | 60 | 4460×2200×2290 | 4 | 8 | 192 | 2800 |
|
Information above for standard drying oven with Steam radiator or electrical heater, drying temperature 50~140℃. Power above for axial flow fan (Default hot-air circulating fan).Centrifugal fan for optional. Outer cover of the oven made of carbon steel or stainless steel. Inner shell aluminum alloy or stainless steel. Tray without holes or with holes for optional. Dehumidify fan for optional. Model including A is special trolley layout for the site with floor area limits. |
|||||||||||
All data for reference only. According to the material features, we have the right to change but not notice, pardon!
