| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | B,B-X |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 20 sets per month |
| Product Name: | Grinding Machine/industrial Grinder Machine | Grinding Mode: | Milling Type |
|---|---|---|---|
| Finished Powder Size: | 80 To 120 Mesh | Dusting Method: | By Bag Filter |
| Input Size: | 2mm To 12mm | Processing Object: | Foodstuff/pharmaceutical |
| Highlight: | universal grinding machine,vibration grinding machine |
||

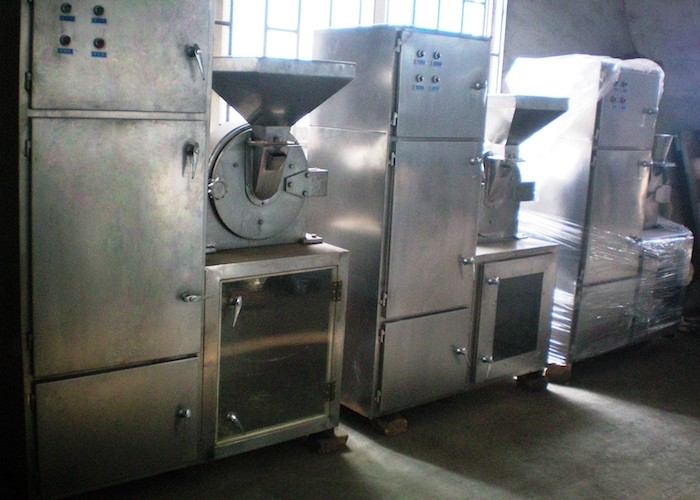

foodstuff milling type Universal Grinding machine for 2mm to 12mm material
Foodstuff Universal Industrial Granules Grinder Milling Type For 2mm - 12mm Material
Description
foodstuff milling type Universal Grinding machine for 2mm to 12mm material is suitable for pharmacy, food industry, and chemical industry . It has wind cooling and is free of screen , it is not restrained from material’s viscosity, rigidity and fiber, can deal with any materials effectively,. It is specially suitable for herb medicine with fibers, and materials with grease.
Work principle
foodstuff milling type Universal Grinding machine for 2mm to 12mm material consists of charging filler, grading wheel, crushing knives,tooth circle, crusher motor, discharging outlet,materials concentration case and dust absorption case. The materials goes into the crushing room from the charging filter, they are crushed by knives rotationg at high speed.
The distance between grading wheel and grading plate can be adjusted to reach the required particle size.
The qualified materials are introduced from the crushing room to the cloth bag in the concentrating case , while the unqualified ones are crushed continuously.
the dust from the cloth bag in the concentrating case are collectesthe dust absorption case. The machine is designed according to GMP standard .
It is characteristic of simple structure , easy operation, low noise, high capacity. The machine is made from stainless steel, no dust will rise when working.
Technical Parameters
| Model | 20B-X/20B | 30B-X/30B | 40B-X/40B | 50B-X/50B |
| Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| revolution of spindle (r/min) | 4500 | 3800 | 3400 | 3400 |
| Size of fed material (mm) | 6 | 10 | 12 | 12 |
| Size of Grinded material (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
| Size of Grinding Motor (kw) | 4 | 5.5 | 11 | 11 |
| Power of Dust-catching Motor (kw) | 1.5 | 1.5 | 1.5 | 1.5 |
|
Overall Dimensions (L x W x H) (mm) |
1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1550×800×1800 |
| 550×600×1650 | 600×650×1650 | 850×700×1700 | 100×800×1800 |
Notes: the output listed in table will be different with different raw material, for reference only. We have the right to change but not notice, pardon!
