| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | YK |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Swaying Granulator/wet Granulator Machine | Granulator Type: | Wet Granulator Machine |
|---|---|---|---|
| Application: | Pharmaceutical | Feature: | Low Cost |
| Product Size: | 1mm,2mm | Raw Material: | Wet Powder |
| Highlight: | fertilizer granule machine,pharmaceutical granulator machine |
||

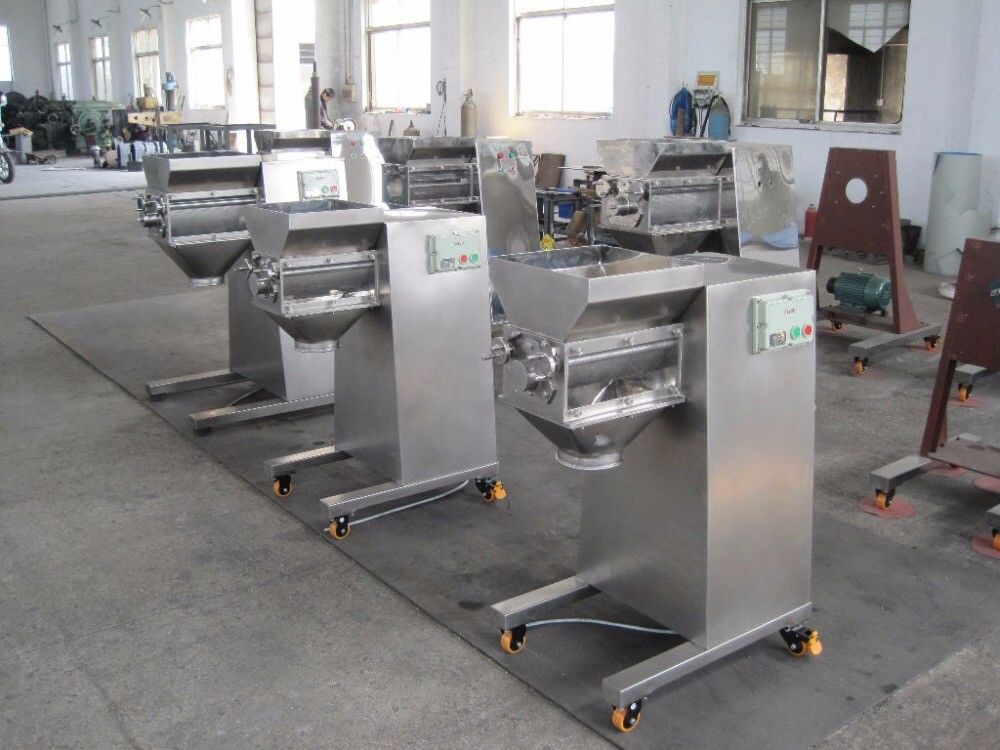

Pharmaceutical batch type cheap Swaying Granulator for wet powder
Main Application
This equipment is widely used in the pharmaceutical, chemical and food industry, it is a popular granulating machine used for forming the granule sizes from moist powder material, or for crushing dried block stock into granules in required size.
Working Principle
The principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotor. The rotor speed and rotation time are variable in the clockwise or counterclockwise directions. Particle size is controlled through mill-screen size, rotor speed, and the rotor's rotation angle.
Optional Model
1.Sealed type:With gas-tight structure at both ends of granulation shaft, it effectively prevent the material into the sealing cover.
2.No rack type:A unique reducer owned byJunzhuo, made the whole machine enclosed .The gearbox has no rack bar and skateboard. There is no sliding friction and the transmission efficiency is much higher. Such a clean healthy environment can meet GMP standard.
3.Explosion-proof: all models can be customized to meet explosion-proof production environment.
4.Large power: Upgrade the transmission gear box and motor, it is suitable for powder products and high proportion materials.
Technical Parameters
| Model | YK-160B | YK-160C(heavy type) |
| Capacity(kg/batch) | 100~200 | 150-300 |
| Motor power(kw) | 3 | 4 |
| Roller rotating speed (rpm) | 65 | 65 |
| Pendulum Angle | 360 | 360. |
| Diameter of roller(mm) | 160 | 160 |
| Overall dimensions(mm, L-W-H) | 1150-680-1150 | 1260-750-1150 |
| Weight(kg) | 300 | 450 |
All data for reference only. According to the material features, we have the right to change but not notice, pardon!
