| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | JZL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Screw Granulator/wet Granulator Machine | Granules Shape: | Cylinder Shape |
|---|---|---|---|
| Granules Size: | 0.8mm To 2.5mm | Granulating Type: | Extruding |
| Speed Adjusting Mode: | By Transducer | Feature: | Water Cooling System Or Air Cooling System |
| Highlight: | Rotary Wet Granulator Machine,fertilizer granule machine |
||

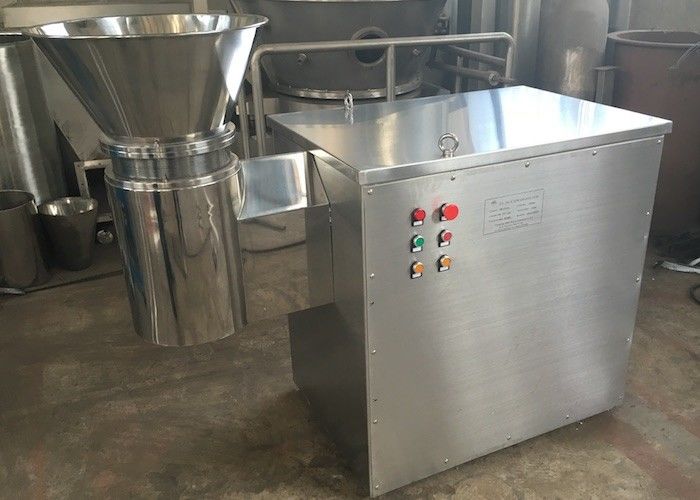

JZL Series Rotary Screw Granulator for cylinder shape granules with size 0.8 to 2.5mm.
Extruding Rotary Wet Granulator Machine For Cylinder Shape Granules Size 0.8 - 2.5mm JZL Series
Application
JZL Series Rotary Screw Granulator for cylinder shape granules with size 0.8 to 2.5mm. is mainly suitable for pharmaceutical industry, foodstuff industry, chemical industry, solid drink industry and so on. It can make the stirred raw material granulate the needed granule. Especially, it is suitable for raw materials that have sticky adhesive.
Special designs for optional
1. Water cooling system or air cooling system for optional.
2. Frequency control for rotating speed for optional.
3. PLC control or explosion-proof system for optional
4. Other requirements, to be discussed.
wet granules from screw granulator granules after drying
Features
All parts contacted with raw material in this machine are made of stainless steel.
Its appearance is beauty and its structure is reasonable.
Its efficiency is high and the granule is beauty.
Its discharge is automatic. Therefore JZL Series Rotary Screw Granulator/Extruder for cylinder shape granules with size 0.8 to 2.5mm.can avoid damaged condition caused manual.
JZL Series Rotary Screw Granulator/Extruder for cylinder shape granules with size 0.8 to 2.5mm.
It is suitable for in line production too.
Technical Parameters
|
Extension knife size mm |
Grain making diameter mm |
Weight kg |
Motor power kw |
Productivity kg/h |
Overall dimension mm |
| 250 | 1-3 | 350 | 3 | 80-200 | 700×540×1400 |
| 300 | 1-3 | 480 | 4 | 100-300 | 800×650×1400 |
All data for reference only. According to the material features, we have the right to change but n
