| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GK |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Dry Granulator Machine | Application: | Indoor |
|---|---|---|---|
| Granules Shape: | Pieces Shape | Feature: | No Liquid Needed |
| Process Object: | Dry Powder | Standard: | CE/ROHS/FCC/SGS |
| Highlight: | Pharmacy Dry Powder Granulator,60 kg/H roller compactor granulator |
||
GK Series pharmacy Indoor dry powder granulator for capsule granules
Main Application
1. Medicine: tablet, capsule filling particles, etc;
2. Food: food manufacturing particles, seasoning particles, etc;
3. Plastic: all kinds of plastic molding particles;
4. Chemical industry: catalyst, pigment, detergent and other particles.
1. Even density of dry granules, good disintegration and high granule ratio.
2. Unique feeding structure guarantees efficient material feeding.
3. Circulated cooling water refuses sticky problems.
4. No need of water,wetting agent or second-time drying, less procedures, high efficiency and low cost.
5. Advanced electric hydraulic pressure, easy to operate with high automation.
6. No pollution due to closed operation, so as to meet the sanitation standard.
7. Especially suitable for the granulating of those material which can not be done by wet granulating method.

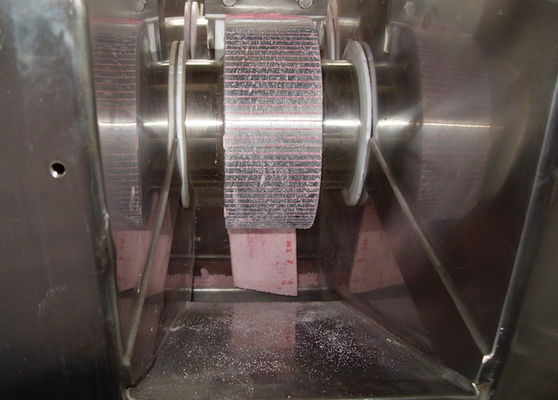

Powder material after mixing,sent to the feeding bin from granulator' top feeding mouth,mixed powder materials is pushed down by screw feeding mechanism,Powder drops into the gap between the two rollers,The roller is rotating and the powder is pressed into slices by cylinder,slices drop down and be granulated by granulator to the particles that needed.
Technical Parameters
| Type | GK-80 | GK-120 |
| Production capacity(kg/h) | 20-60 | 30-100 |
| Fineness of granules(mm) | 0.3-1.5 | 0.3-1.5 |
| Power(KW) | 7.15 | 14 |
| Working pressure(KN) | 198 | 198 |
| Overall dimensions (L*W*H)(mm) | 1540*1230*2325 | 1980*1500*2580 |
| Weight(kg) | 2300 | 3500 |
