| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GK |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Dry Granulator Machine/roller Granulator | Application: | Indoor |
|---|---|---|---|
| Granules Shape: | Pieces Shape | Feature: | Dry Compacting Granulator |
| Process Object: | Dry Powder | Standard: | CE/ROHS/FCC/SGS |
| Highlight: | double roller granulator,roller compactor granulator |
||

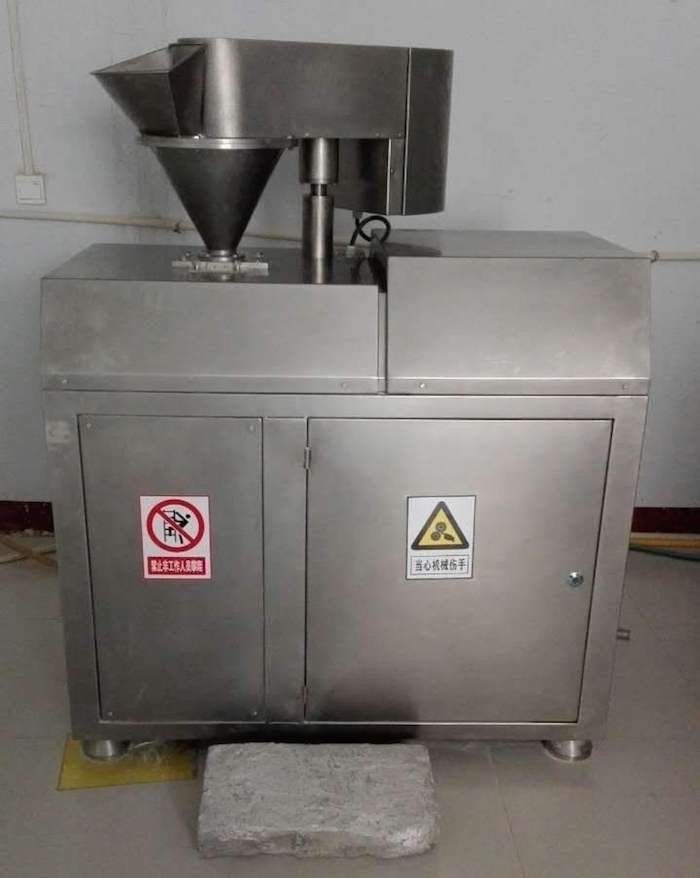

high quality Extrusion roller granulator Dry Compacting Granulator
Description
Dry powder materials with certain amount of crystal water or tiny crystal materials are extruded into flakes and on the basis of the needs of the customers.
Adjust the pressures of the Oil cylinder above the feeding screw so as to create a pre-extruded pressure, and then put raw materials in the hopper, which are propelled to the two bite angles of the two extrusion rollers as conveyed and compressed by the feeding screw. Density of the powder materials increases in germination in this process.
Compress the raw materials into slices with horizontal extrusion roller whose patterns of surfaces (For example, even surfaces or surfaces with flowers, etc) and speed (The length of time when raw materials are laid out in the extruding areas depends on the speed of extrusion) vary with the characteristics of the materials.
The pressures for the extrusion of raw materials are linearly transmitted into the extrusion roller through hydraulic equipment which maintains a proper pre-extruded pressure. The extruders are arranged in the same line so as to assure the density consistency of raw materials
Application
The powder materials are directly made into granulated products as required by customers. No agents or additives are used in the production. Meanwhile, the granulated particles are of the same size and the stacking density is increased, thus improving the liquidity of particles. It avoids the rising of dusts, reduces the waste of materials, and brings convenience for the storage and transportation; meanwhile, the solubility, porosity and specific surface area are easily controlled
All part touch with material SS316L, other SS304. Speed adjustable
Technical Parameters
| Type | GK-80 | GK-120 |
| Production capacity(kg/h) | 20-60 | 30-100 |
| Fineness of granules(mm) | 0.3-1.5 | 0.3-1.5 |
| Power(KW) | 7.15 | 14 |
| Working pressure(KN) | 198 | 198 |
| Overall dimensions (L*W*H)(mm) | 1540*1230*2325 | 1980*1500*2580 |
| Weight(kg) | 2300 | 3500 |
