| Place of Origin: | China |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GHL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Payment Terms: | T/T or LC at sight |
| Supply Ability: | 20 sets per month |
| Product Name: | Blender Granulator | Model: | GHL-250 |
|---|---|---|---|
| Discharging Mode: | By Cylinder | Feature: | Rapid Mixing |
| Standard: | CE/ROHS/FCC/SGS | Type: | Horizontal Type |
| Highlight: | high shear mixer granulator,high shear lab mixer |
||

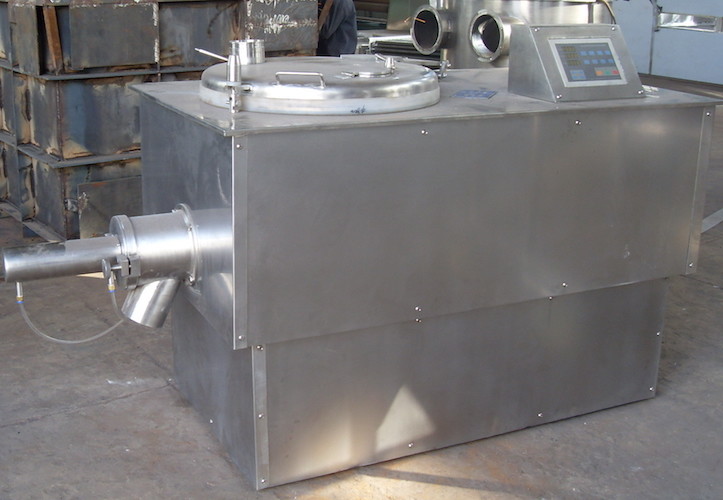

GHL-250 Touch controller horizontal rapid mixing blender granulator
Touch Controller High Speed Mixer Granulator GHL-250 Horizontal Rapid Mixture Granulator
Application
GHL-250 Touch controller horizontal rapid mixing blender granulator is suitable for pharmaceutical industry, foodstuff industry, chemical industry and so on. The granule is made from powder to damp granule in which the adhesive should be injected in it.GHL Series Horizontal Type High Speed wet Mixing granulator for powder has granulating and mixing function in its one body.
Work principle
The powder raw material and adhesive are mixed to moisture soft material through mixing oar at the bottom of the cylinder (cone) container. Then cut it to become uniform damp granule through high speed crushing oar installed at the side.Finshed product is discharged by cylinder.
Features
1. PLC based operating panel for precise control of process & automation.
2. A high-speed granulator is inserted horizontally through wall of bowl to assist blending of powder and to break the product to the granules of required size.
3. The seal housing and drive shaft may be flushed with cleaning water, which is then drained away from the machine through built in drain tubes.
4. Granulator motor is provided with a removable stainless steel shroud which covers the motor and simplify cleaning.
5. All moving parts of the machine are totally enclosed to eliminate accident.
6. The machine can not be started unless and until the mixer cover is properly closed.
7. Flush wall type discharge valve eliminates pockets at the port of discharge valve
Technical parameters
| Name | GHL-50 | GHL-150 | GHL-200 | GHL-250 | GHL-300 | GHL-400 | GHL-600 |
| Capacity(L) | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Outpu(kg/batch) | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| Mix speed(r.p.m) | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Mixer power(kw) | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
| Cutting speed(r.p.m) | 1500/3000 | ||||||
| Cutting power(kw) | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
|
Compressed air consumption |
0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
