| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | SYH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30sets per month |
| Product Name: | Industrial Powder Mixer/3D Motion Mixer | Rotating Mode: | Three Dimensional Motion |
|---|---|---|---|
| Standard: | GMP | Inside Surface: | Mirror Surface |
| Speed Adjust Mode: | By Transducer | Layout Type: | Horizontal |
| Highlight: | powder blending machine,powder blending equipment |
||

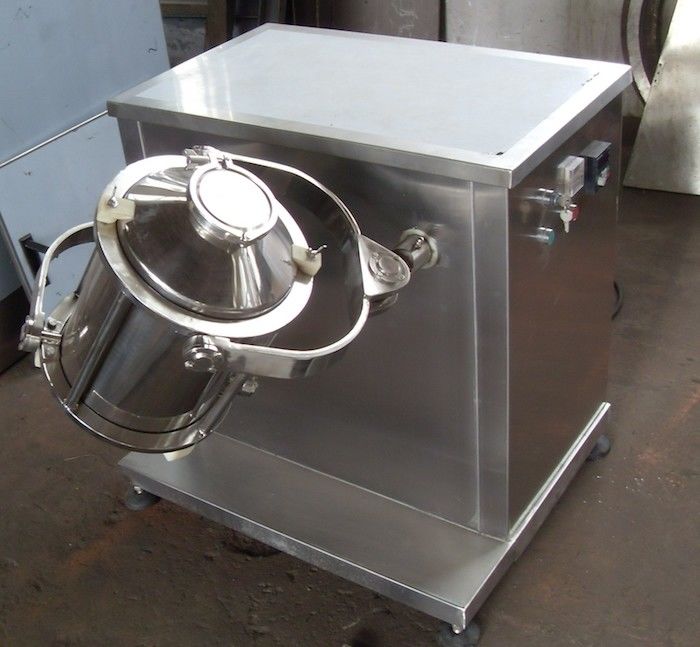

SYH-15 model low RPM lab use 3D motion mixer for material testing
Low RPM Industrial Powder Mixer Equipment 3D Max Motion Mixer For Material Testing
for lab model SYH15,SYH20,more detials please contact us.
Application
SYH-15 model low RPM lab use 3D motion mixer for material testing is suitable for many industries such as pharmaceutical industry, chemical industry, metallurgy industry, foodstuff industry, architecture industry and institutes. It can mix powders and granules having good fluidity and make the mixed raw materials reach the best mixing state.
Features
1) A highly efficient mixing equipment, used for high homogeneity mixing of powdery and particle materials in such trades as pharmaceutical, food, chemical, light industry, machinery, electronics, mining and metallurgy, national defense industry and scientific research area
2) Material has no centrifugal force effect, specific gravity segregation, lamination and accumulation during mixing. Each component can be mixed under wide gap of weight proportion, and mixing rate exceeds 99.9%
3) Loading efficiency can reach 80% (40% for normal ones)
4) With compact structure, driving part of the equipment is stepless speed controlled, featuring convenient operation
5) Each part of drum is transited by arc and polished precisely, meeting the GMP requirements
Principle of work
Mixing barrel is suspended on the ends of driving, and driven axles through two Y type universal joints, which are crossing and vertical to each other in the space.When driving axle is driven to rotate, universal joint makes the barrel perform composite motions, including horizontal moving, rotation and turning in the
space. By which, materials also performs 3-dimensional motion inside the barrel.Several kinds of materials inside the barrel flow, diffuse, penetrate each other and finally form uniform status.
Technical Parameters
| Model | SYH50 | SYH100 | SYH200 | SYH400 | SYH600 | SYH800 | SYH1000 | SYH1500 |
| Volumeofmixingdrum(L) | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1500 |
| Maxloadingvolume(L) | 40 | 80 | 150 | 300 | 450 | 600 | 750 | 1200 |
| Maxloadingweight(kg) | 25 | 80 | 150 | 200 | 300 | 400 | 500 | 750 |
|
Revolution of main shaft (r/min) |
0~8 |
|||||||
| Powerofmotor(kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
| Overall dimensions(mm) |
600×1000 ×1000 |
1200×1800 ×1500 |
1300×1600 ×1500 |
1500×2200 ×1500 |
1850×2500 ×1650 |
1900×2400 ×2100 |
1950×2500 ×2400 |
2600×2500 ×2350 |
| Weight(kg) | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 | 3500 |
All data for reference only. According to the material features, we have the right to change but not notice, pardon!
Parts for optional
Plastic mixing tank for mixing of special material.
Frequency control for motor.
PLC+ touch screen controller.
Explosion-proof system
GMP standards for pharmaceutical industry.
Other requirements to be discussed before order.
