| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | VH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Industrial Powder Mixer/powder Blender | Feature: | High Efficient |
|---|---|---|---|
| Application: | Dry Powder | Mixing Mode: | Rotating |
| Speed Control: | By Transducer | Special Design: | Liquid Feeding |
| Highlight: | powder blending machine,powder blending equipment |
||

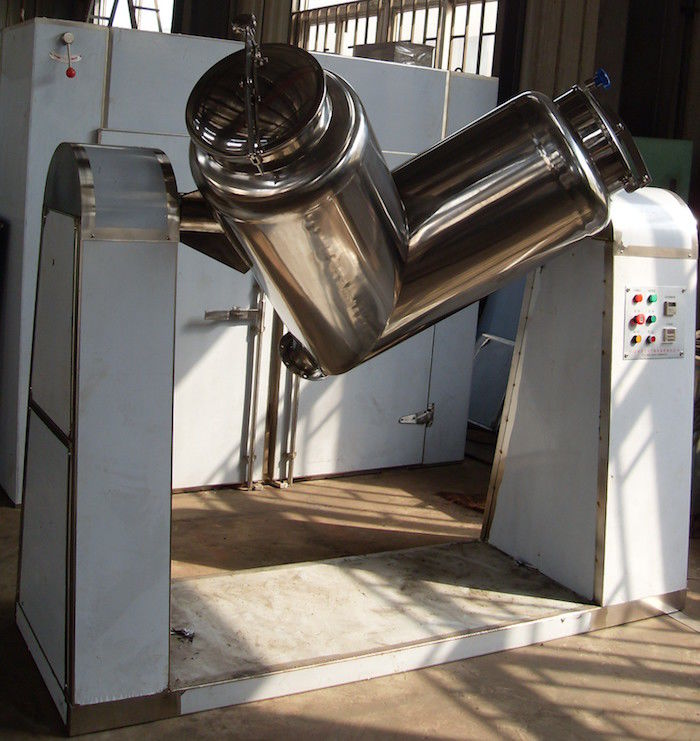

V shape industrial high efficient powder blender with liquid spraying
Dry Powder Industrial Powder Mixer Equipment / Blender V Shape With Liquid Spraying
Usage
V shape industrial high efficient powder blender with liquid spraying that used to mix grains of drying material is applied in pharmacy,chemical industry,food production and scientific research in stitution.
Features
V shape industrial high efficient powder blender with liquid spraying has the following distinguishing features, no blind eagle in the cylinders, no accumulation of materials, high speed, and short mixing time. With the body made of stainless steel and both inner and outer walls polished, the cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging, rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powdery or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing
Technical Parameters
| Model | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Product capacity (kg/h) | 72 | 120 | 200 | 400 | 600 | 80 | 1000 | 1200 | 1600 | 2000 | 2400 |
| Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 | W4 |
| Time of raw material fed in (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
| Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
| To tal volume (m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Speed of stirring (rpm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
| Power of motor (kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 1 | 15 | 18.5 |
| Rotating height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
| Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
Note:all loading coefficient is usually 0.4~0.6.The capacity listed above is based on loading coefficient 0.5 and specific gravity of raw material 0.8g/cm3
