| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | WLDH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |

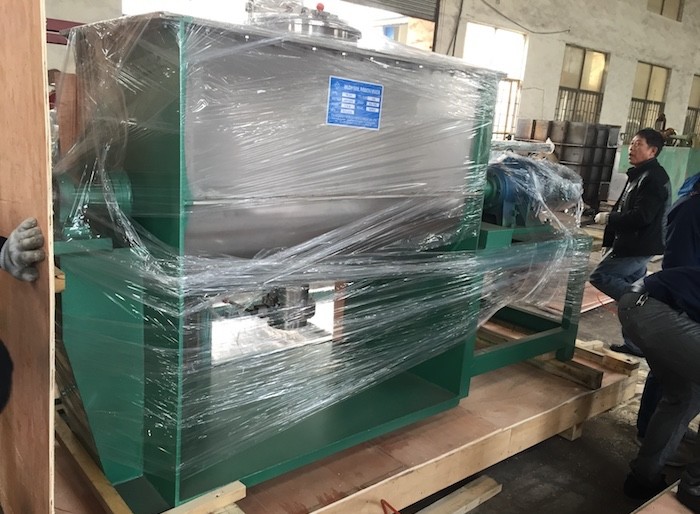

| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Ribbon Blender Mixer/industrial Powder Mixer | Mixer Type: | Horizontal |
|---|---|---|---|
| Feature: | Stirring Paddle | Mixing Type: | Wet Mixer |
| Processing Object: | Powder Mixer | Structure: | Mixing Paddle |
| Highlight: | powder blending machine,powder blending equipment |
||
WLDH-0.5 powder double helical horizontal ribbon blender mixer
Application
WLDH-0.5 powder double helical horizontal ribbon blender mixer industrial powder mixer is a late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. The special design of double ribbon mix the materials into high uniformity in a few minutes. On the other hand, ribbon mixer shows a wide application from powder mixing , powder-liquid, to paste or materials in high specific gravity (such as putty, really stone paint, metal powder and other materials) and becomes one of the most popular single shaft horizontal mixing equipment.
Principle of work
WLDH-0.5 powder double helical horizontal ribbon blender mixer industrial powder mixer is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3layers, the outer screw converge is the material to the centre from two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to from convection mixing, the cubage can be made into rotundity, so the jacket can be played in reaction and drying.
And the materials is thrown and sprinkled by the rotating flying cutter at a high speed when it flows through the flying cutter, thus the material is mixed evenly in a shorter time.
Advantages
1. Wider Application,Less Crush
The special design of double ribbon is suitable not only for powder mixing but also powder-liquid, paste mixing or the materials with high viscosity or specific gravity(such as putty, really stone paint, metal powder and etc material). The designed radial speed of ribbon ranges from 1.8-2.2m/s, therefore, this is a flexibility mixing which have a low material destructiveness.
2. Higher Stability, Longer Service Life
All the main components of the equipment are international famous products with good quality. Reducer takes use of K series Spiral cone gear reducer with high output torque, low noise, long service life and small oil leakage. Discharging valve are designed with the same radian with cylinder to ensure no discharging dead zone. In addition, the special design of valve
3. Higher Loading Rate, Better Sealing
The angle of mixing cylinder are designed according to materials characteristics ranges from 180º-300º and the largest loading is 70%. Different sealing method are in option. As for ultrafine powder, pneumatic + packing seal are used as it improves sealing service time and effects to large extent. On the other hand, in terms of materials with good fluidity, mechanical seal is the optimized choice which can meet the requirement of different operation condition.
4. Full Specification
Products can be customized in different specifications, such as mixer with spray, vacuum system, cover support, heating system, ex-proof, break ribbon and etc in SS304 or ss316. Lining of cylinder can be polyurethane or spraying wear-resistant material. In terms of valves, plum blossom valve, butterfly valve, flap valve, ball valve and etc. are in option.
Technical Parameters
| Model | Volumem3 | InputcapacityL/batch | Totalpowder(kw) | Weight (kg) | Overalldimension(mm) |
| WLDH-0.1 | 0.1 | 30-50 | 3 | 300 | 1190×740×770 |
| WLDH-0.3 | 0.3 | 100-150 | 4 | 500 | 2030×630×980 |
| WLDH-0.5 | 0.5 | 200-300 | 7.5 | 900 | 2320×730×1130 |
| WLDH-1 | 1 | 400-600 | 11 | 1400 | 2800×920×1320 |
| WLDH-1.5 | 1.5 | 600-900 | 11 | 1900 | 3180×1020×1550 |
| WLDH-2 | 2 | 800-1200 | 15 | 2500 | 3310×1120×1640 |
| WLDH-3 | 3 | 1200-1800 | 18.5 | 3100 | 3750×1290×1820 |
| WLDH-4 | 4 | 1600-2400 | 30 | 3600 | 4220×1400×1990 |
| WLDH-6 | 6 | 2400-3600 | 37 | 5300 | 4700×1610×2260 |
| WLDH-8 | 8 | 3200-4800 | 45 | 6800 | 4420×2150×2470 |
| WLDH-10 | 10 | 4000-6000 | 55 | 8900 |
Note:Thisseriesisdesignedaccordingtothevolume.Fordifferentmaterials,themixcapacityisdifferent.onlyforreference.
