| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | DSH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Industrial Powder Mixer/conical Screw Mixer | Feature: | Double Screw |
|---|---|---|---|
| Mixing Model: | Vertical Blender | Application: | Chemical Powder |
| Processing Object: | Heavy Powder | ||
| Highlight: | powder mixing machine,powder blending machine |
||

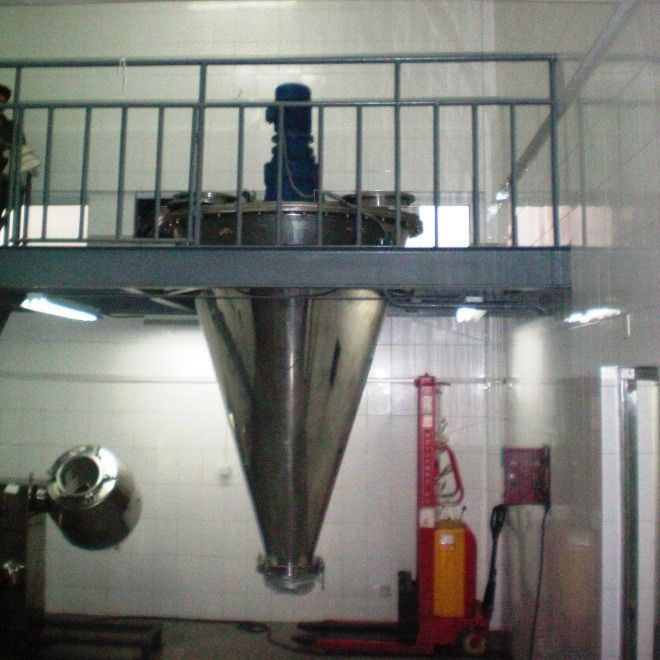

double screw conical screw mixer vertical blender for chemical powder
Description
double screw conical screw mixer vertical blender for chemical powder is worldwide acknowledged as the industrial standard conical shape mixer and it is used on a wide variety of applications in the industry such as pharmaceutical, food, battery materials, dyestuff & pigment, chemical industry, fertilizer, rare earth, titanium powder etc. It is widely used to mix powder-powder, power-liquid, especially for fine powder, fiber or chip-shaped materials.
Working Principle:
double screw conical screw mixer vertical blender for chemical powder is made based on the principle of rotation and revolution, conveying the material along with the axle by means of rotation. Simultaneously, the material is upward and downward cycled by gyratory stirring along wall surface of cone, with the central revolution. The even mixing can be performed in the shortest time.
Optional Features:
Carbon Steel, Stainless Steel 304, Stainless Steel 316L
Internal pressure
Sanitary type construction
Dislocated valve, butterfly valve, slide gate valve, ball valve
Horsepower to suit higher density materials
Explosion-proof motors
Controls such as variable frequency drives, motor starters and operator stations are available
Spray nozzles for liquid introduction
Jacket for heating or cooling
Technical Parameters
|
Model |
capacity(k/time) |
Total Volume (M3) |
Loading coefficient | Bulk density | Raw material size(mesh) | Power(kw) | Mixing time(min) | Dimensions(mm) |
Weight (kg) |
| DSH－0.2 | 95 | 0.2 | 0.6 | -‐0.8 | 20-‐250 | 2.2 | 6-‐10 | ф890×1850 | 600 |
| DSH－0.5 | 190 | 0.5 | 0.6 | -‐0.8 | 20-‐250 | 2.2 | 6-‐10 | ф1160×2250 | 800 |
| DSH－1 | 380 | 1 | 0.6 | -‐0.8 | 20-‐250 | 4 | 8-‐10 | ф1450×2700 | 1200 |
| DSH－2 | 720 | 2 | 0.6 | -‐0.8 | 20-‐250 | 5.5 | 8-‐10 | ф1850×3450 | 1800 |
| DSH－4 | 1400 | 4 | 0.6 | -‐0.8 | 20-‐250 | 11 | 8-‐10 | ф2260×4210 | 2500 |
| DSH－5 | 2400 | 5 | 0.6 | -‐0.8 | 20-‐250 | 15 | 8-‐10 | ф2578×4566 | 3400 |
| DSH－6 | 2880 | 6 | 0.6 | -‐0.8 | 20-‐250 | 18.5 | 8-‐10 | ф2710×4782 | 3550 |
| DSH－8 | 3840 | 8 | 0.6 | -‐0.8 | 20-‐250 | 18.5 | 8-‐10 | ф2950×5392 | 3700 |
| DSH－10 | 4800 | 10 | 0.6 | ～0.8 | 20-‐250 | 22 | 8-‐10 | ф3168×5735 | 3950 |
Information above for reference, according to material features and customer’s requirement, we have right to change but not notice.
