| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | EYH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Industrial Powder Mixer/blending Machine | Feature: | Frequency Control |
|---|---|---|---|
| Application: | Granule Mixing | Hopper Structure: | Mixing Paddle |
| Material: | 304,316 | Speed: | Adjustable |
| Highlight: | powder blending machine,powder blending equipment |
||
frequency control granule mixing two dimension blender blending machine
Application

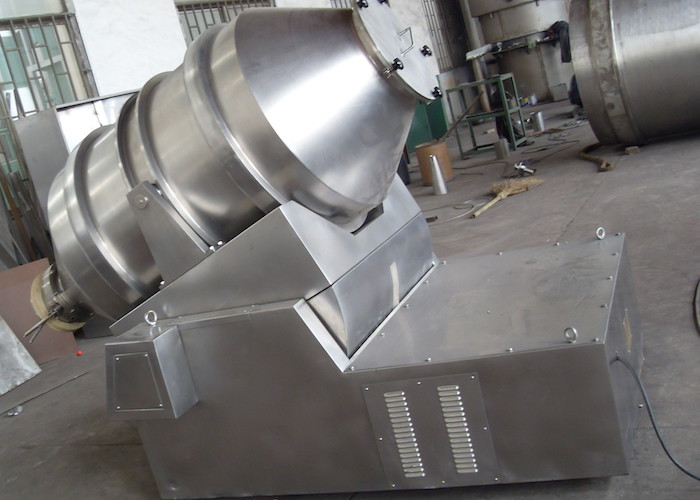

frequency control granule mixing two dimension blender blending machine consists of rotary tank, swinging frame and machine frame. Rotary tank is installed on the swinging frame, it is supported by four contact rollers and its axial location is done by two stop wheels. Among the four support contact rollers, under rotating power system two drive wheels make the tank rotate. Swinging frame is driven by a group of crankshaft swinging bar. Crankshaft swinging bars are installed on the machine frame, and swinging frame is supported on the machine frame by bearing parts.
Principle of work
The rotary tank of frequency control granule mixing two dimension blender blending machine can do two motions at the same time. One is the rotation of tank and one is swinging with the swinging frame. In the tank, material is overturned and mixed with the rotation of tank, and at the same time it is mixed left and right turnaround with the swinging of tank. Under the effect of two motions, material is mixed fully in the short time. It suitable for mixing all powder and granules materials.
Features
1. Frequency control granule mixing two dimension blender blending machine is widely applied in pharmacy, chemical industry, food industry dyeing industry, fertilizer industry and pesticide industry, especially suitable for mixing large-tonnage (1000L - 10000L) solid materials.
2. The mixing barrel swings while rotates so that the materials in the barrel can be fully mixed. Because the discharge port of the barrel is out of the barrel centre line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
TechnicalParameters
| Model |
Barrel volume(L) |
Loading capacity(L) |
Max Loading Weight (kg/batch) |
Times of Swing ＆Rotation (r/min) |
Total motor power (Kw) |
Overall dimensions X×Y× Z×Z1 (mm) |
Total weight(kg) |
Barrel weight(kg) |
| EYH300 | 300 | 150 | 75 | 30 | 1.15 | 900×1350×1550×1400 | 340 | 60 |
| EYH600 | 600 | 300 | 150 | 23.6 | 3 | 1170×1640×2050×1910 | 1150 | 140 |
| EYH800 | 800 | 400 | 200 | 19.8 | 3 | 1320×950×2150×2000 | 1600 | 200 |
| EYH1000 | 1000 | 500 | 250 | 19.8 | 3 | 1360×2040×2300×2170 | 1700 | 240 |
| EYH1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1580×2400×2550×2330 | 2000 | 320 |
| EYH2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1740×2600×2770×2550 | 2600 | 430 |
| EYH3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1800×2900×2950×2800 | 3500 | 620 |
| EYH4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 1970×3300×3300×2950 | 4100 | 700 |
| EYH6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2300×2900×3800×3100 | 6100 | 1100 |
| EYH8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2540×4100×4050×3650 | 7900 | 1450 |
| EYH10000 | 10000 | 5000 | 2500 | 9 | 30 | 2900×4500×4400×4020 | 9500 | 1650 |
| EYH12000 | 12000 | 7200 | 3600 | 7 | 30 | 3050×4850×4460×4090 | 10000 | 1800 |
| EYH-15000 | 15000 | 9000 | 4500 | 6 | 50 | 3100×5600×4700×4200 | 11000 | 2000 |
| EYH-20000 | 20000 | 12000 | 6000 | 6 | 60 | 3600×6100×5000×4500 | 12000 | 2500 |
Alldataforreference only. Accordingtothematerialfeatures,wehavetherighttochangebutnotnotice,pardon!
