| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | WLDH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Ribbon Mixer/industrial Powder Mixer | Mixer Type: | Horizontal |
|---|---|---|---|
| Feature: | Stirring Paddle | Mixing Type: | Wet Mixer |
| Processing Object: | Powder Mixer | Structure: | Mixing Paddle |
| Highlight: | Stirring Paddle powder mixing machine,11kw Horizontal Ribbon Mixer |
||

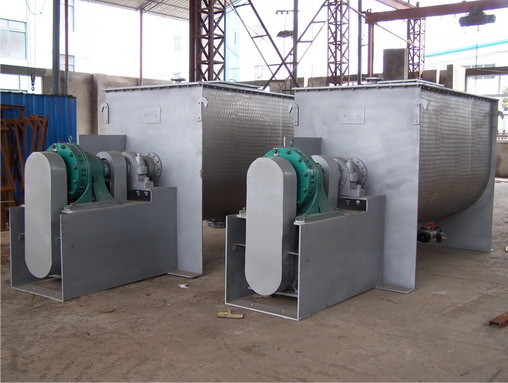

WLDH Series horizontal type Ribbon mixer industrial powder mixer
Wet Mixer Horizontal Ribbon Mixer , WLDH Series Ribbon Blender Machine
Application
WLDH Series horizontal type Ribbon mixer industrial powder mixer is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the material is suitable for the mixing case where the output is large and there is no need of displacing material variety frequently.
Principle of work
WLDH Series horizontal type Ribbon mixer industrial powder mixer is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3layers, the outer screw converge is the material to the centre from two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to from convection mixing, the cubage can be made into rotundity, so the jacket can be played in reaction and drying.
And the materials is thrown and sprinkled by the rotating flying cutter at a high speed when it flows through the flying cutter, thus the material is mixed evenly in a shorter time.
Features
1. large mixing capacity. small occupied area
2. High efficient, fast speed of mixing.
3. when mixing material viscous or adhesive powder material, it may be hard to clean. So, it is more suitable for no need of displacing material variety frequently.
Technical Parameters
| Model | Volumem3 | InputcapacityL/batch | Totalpowder(kw) | Weight (kg) | Overalldimension(mm) |
| WLDH-0.1 | 0.1 | 30-50 | 3 | 300 | 1190×740×770 |
| WLDH-0.3 | 0.3 | 100-150 | 4 | 500 | 2030×630×980 |
| WLDH-0.5 | 0.5 | 200-300 | 7.5 | 900 | 2320×730×1130 |
| WLDH-1 | 1 | 400-600 | 11 | 1400 | 2800×920×1320 |
| WLDH-1.5 | 1.5 | 600-900 | 11 | 1900 | 3180×1020×1550 |
| WLDH-2 | 2 | 800-1200 | 15 | 2500 | 3310×1120×1640 |
| WLDH-3 | 3 | 1200-1800 | 18.5 | 3100 | 3750×1290×1820 |
| WLDH-4 | 4 | 1600-2400 | 30 | 3600 | 4220×1400×1990 |
| WLDH-6 | 6 | 2400-3600 | 37 | 5300 | 4700×1610×2260 |
| WLDH-8 | 8 | 3200-4800 | 45 | 6800 | 4420×2150×2470 |
| WLDH-10 | 10 | 4000-6000 | 55 | 8900 |
Note:Thisseriesisdesignedaccordingtothevolume.Fordifferentmaterials,themixcapacityisdifferent.onlyforreference.
