| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | VH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | V Mixer / Industrail Powder Mixer | Feature: | V Shape |
|---|---|---|---|
| Application: | Powder,granule | Mixing Mode: | Rotating |
| Speed Control: | By Transducer | Special Design: | Liquid Feeding |
| Highlight: | Foodstuff powder mixing machine,1000kg/h powder blending machine |
||
VH Series V Type High Efficiency Industrial Powder Mixer with liquid feeding
Chemical Industrial Powder Mixer Equipment Liquid Feeding V Shape Powder Mixer
Description
The V shape mixer machine is suitable for two or more materials in dry powder or granule shape of pharmaceutical, chemical, foodstuff industry etc. The structure of V type mixer machine is unique, the mix efficiency is high and there is no hidden corner. Its inner wall and out wall are both polished and the appearance is good-look.
Application
The V shape mixer machine is widely used for mixing more than two materials of powder or granule shape in pharmaceutical industry, chemical industry, foodstuff industry and so on.
Principle
VH Series V Type High Efficiency Industrial Powder Mixer with liquid feeding is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on.
Feature
The structure of this machine is unique.
Its mixing efficiency is high and no dead corner.

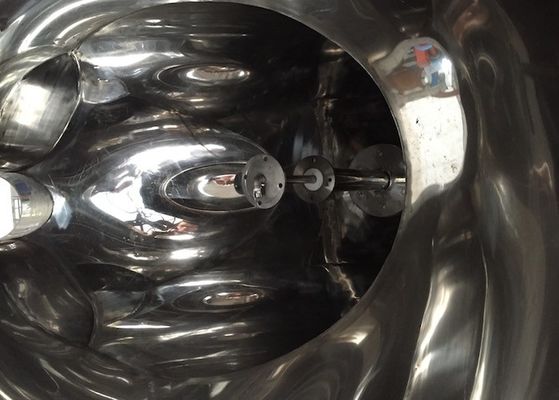

It is made of stainless steel. Its inner and outer wall is processed through polishing.
Its appearance is beauty.
Its mixing is uniform.
Its scope of application is wide.
The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture as request.
Technical Parameters
| Model | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Product capacity (kg/h) | 72 | 120 | 200 | 400 | 600 | 80 | 1000 | 1200 | 1600 | 2000 | 2400 |
| Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 | W4 |
| Time of raw material fed in (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
| Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
| To tal volume (m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Speed of stirring (rpm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
| Power of motor (kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 1 | 15 | 18.5 |
| Rotating height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
| Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
Note:all loading coefficient is usually 0.4~0.6.The capacity listed above is based on loading coefficient 0.5 and specific gravity of raw material 0.8g/cm3
