| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | FL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Fluid Bed Systems/fluid Bed Granulator | Feature: | One Step Granulator |
|---|---|---|---|
| Machine Shape: | Vertical Type | Heating Mode: | Electrical, Steam |
| Liquid Spraying Mode: | Top Spraying | Spraying Gun Type: | Two-fluid |
| Application: | Pharmaceutical | ||
| Highlight: | Vertical top spray granulation,11kw fluid bed processor |
||

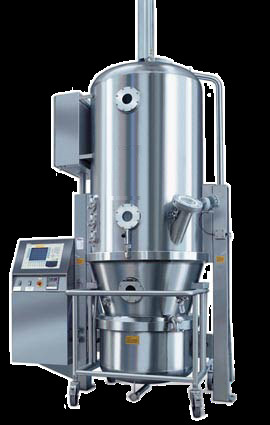

vertical type one step granulator fluid bed systems with auto feeding
Application
1. Medicine: Radix isatidis, Andrographolide, Allicin, Protease, Angelica, Compound Paracetamol and Amantadine Hydrochloride Capsules, Radix Astragali, Xantinol Nicotinate, Bezoar Tablet, Chlorphenamine Maleate Tablets, Qingxue-Bawei Capsule, Gentamicin, Cactus Wei Kang Capsules. 2.food and feed additives: glucosamine hydrochloride, Effect of Apramycin, TP, spectinomycin, aspartame, guitar adriamycin, Colistin of sulfuric acid, cellulose, xylanase, Metalor Streptozotocin, Thailand Miao streptozotocin, streptomycin, phytase.
Principle
After purifying and heating the air in drafted by draft fan to the lower part of the drier then through the air distribution plate, making the materials powder fluidized in circular flow; Adhesive solution atomized by nozzles, the small droplet from the nozzle gathers a number of particles together as cumularspharolith. As the drying of the material, the cumularspharolith water evaporation and adhesive solution solidified. This process repeats, creating the ideal, even and porous spherical particles.
Features
Technical Parameters
| Item | unit | Model | |||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| container | volume | liter | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capability | min | kg/batch | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg/batch | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
|
|
velocity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure | mm H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
| weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | |
| steam pressure | Mpa | 0.3-0.6 | |||||||||
| temperature | ℃ | adjustable at the range from room temperature to 120℃ | |||||||||
| working time | min | decided in accordance with the properties of raw materials | |||||||||
| collect rate | % | ≥99 | |||||||||
| noise | dB(A) | when do installation ,main machine is separated from fan. | |||||||||
| Dimension(L×W×H) | m |
1.0×0.6 |
1.2×0.7 |
1.25×0.9 |
1.6×1.1 |
1.85×1.4 |
2.2×1.65 |
2.34×1.7 |
2.8×2.0 |
3×2.25 |
|
All datas for reference only. According to the material features, we have the right to change but not notice, pardon!
