| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | FL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |

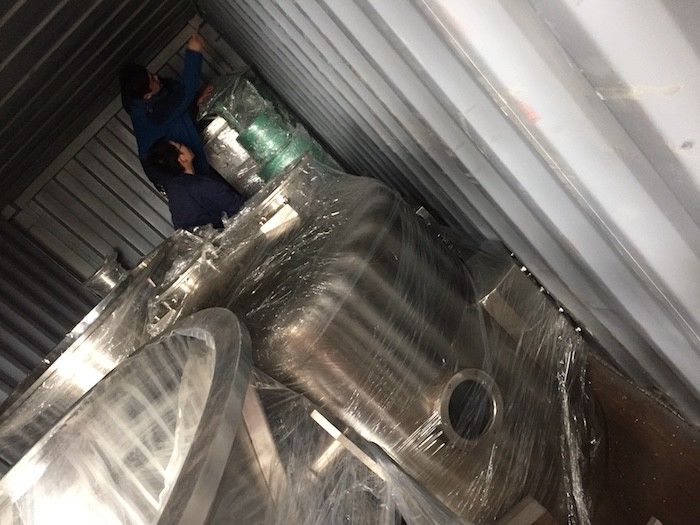

| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Fluid Bed Spray Granulation | Feature: | Multifunctional |
|---|---|---|---|
| Liquid Feeding Mode: | By Mono Pump | Heating Mode: | Electrical, Steam |
| Liquid Spraying Mode: | Top Spraying | Spraying Gun Type: | Two-fluid |
| Application: | Pharmaceutical | ||
| Highlight: | powder granulator machine,top spray granulation |
||

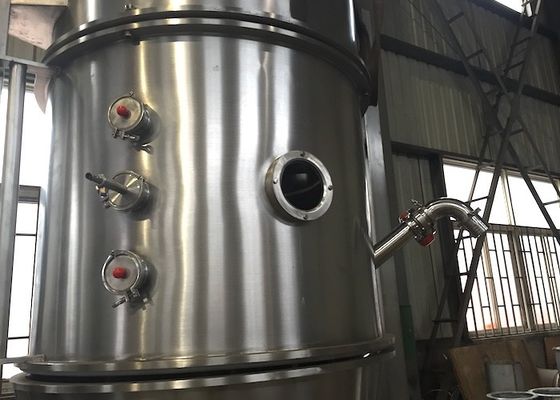

FL Series Pharmaceutical multifunctional one step Fluid Bed Spray Granulation
Description
Pellet Granulator has these functions:
Mixing:All products which can be fluidized e.g. powder, granules, extrudates, pellets etc. are homogeneously mixed in the Jinggong DPL fluid bed process unit. By the special process air flow (horizontal , radial and tangential ) the mixing behaving is particularly good.
Drying:All products which can be fluidized up to every residual moisture physically possible.
Granulation
Powdery products. By spraying of binders nearly every requested granules can be produced.
Principle
The powder material in container (fluid bed) is in the state of annular fluidization. It is preheated and mixed with clean and heated air. At the same time, the solution of adhesive solvent is fogged and sprayed into the container. It makes some of particles become granules that contains adhesive. Being of ceaselessly dry in hot air, the moisture in the granule is evaporated and the adhesive is solidify. The process is carried out continuously. Finally it forms ideal, uniform and porous granules
Features
1. with high drying efficiency
2. can print and record operation parameters under the control of PLC and HMI.
3. Inlet handling system consists 3 grades filter
4. Exhaust air can be designed as the customers’ requirments.
5. Lifter unloading or vacuum unloading is designed to form dust free unloading,meets with the GMP.
6. Anti-explosion is optional to guarantee safty.
7. Dehumidification system and WIP online cleaning system are optional
Technical Parameters
| Item | unit | Model | |||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| container | volume | liter | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capability | min | kg/batch | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg/batch | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
|
|
velocity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure | mm H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
| weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | |
| steam pressure | Mpa | 0.3-0.6 | |||||||||
| temperature | ℃ | adjustable at the range from room temperature to 120℃ | |||||||||
| working time | min | decided in accordance with the properties of raw materials | |||||||||
| collect rate | % | ≥99 | |||||||||
| noise | dB(A) | when do installation ,main machine is separated from fan. | |||||||||
| Dimension(L×W×H) | m |
1.0×0.6 |
1.2×0.7 |
1.25×0.9 |
1.6×1.1 |
1.85×1.4 |
2.2×1.65 |
2.34×1.7 |
2.8×2.0 |
3×2.25 |
|
All datas for reference only. According to the material features, we have the right to change but not notice, pardon!
