| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | FZG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Product Name: | Laboratory Vacuum Dryer | Features: | Customization |
|---|---|---|---|
| Drying Type: | Static | Application: | Lab Use |
| Tray Number: | 48 Trays | Heating Resource: | Steam,electrical,oil |
| Highlight: | Foodstaff Static Vacuum Tray Dryer |
||

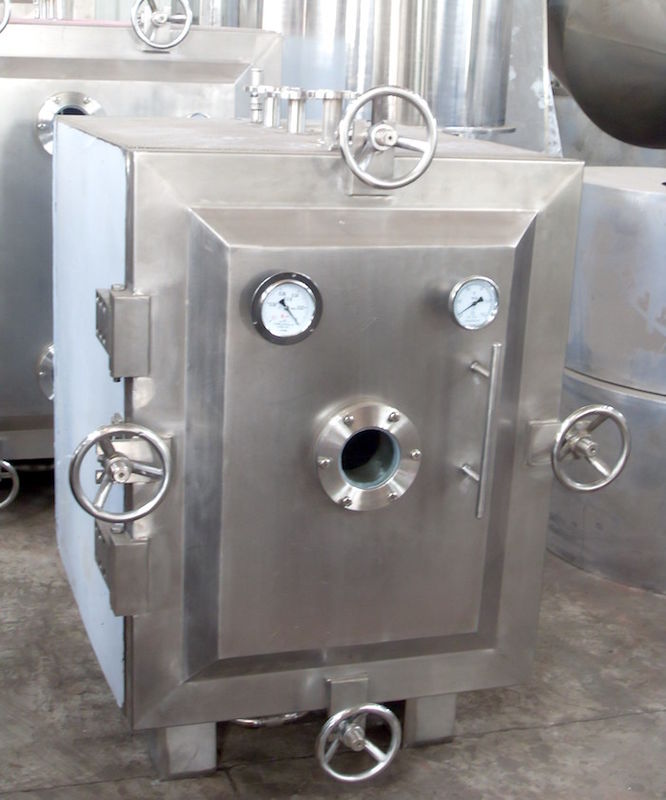

8 Trays Small Vacuum Oven , Customization Laboratory Drying Oven
4 trays to 8 trays customization llab use small vacuum drying oven
this vacuum drying oven with 4 trays,6 trays or 8 trays for optional.
Description
4 trays to 8 trays customization llab use small vacuum drying oven is divided into static and dynamic drier. FZG Series Static Square Shape Vacuum Drying Equipment for Solvent Recovery belongs to static drier. When raw material is dried in static drier, raw material is in static state and its shape can not be destroyed. Before drying, it can carry out the treatment of disinfection. When raw material is dried in dynamic drier, raw material is turned over ceaselessly. So it can be dried better and more uniformly.
In the state of vacuum, the boiling point of raw material will be dropped. Therefore 4 to 8 trays customization llab use small vacuum drying oven is suitable for drying raw material that is unstable or thermal sensitive. The vacuum drier is very airtight. So it is also suitable for drying raw material that contains strong irritative and toxic gases and the solvent needs to recovery.
Application
4 trays to 8 trays customization llab use small vacuum drying oven is suitable for drying heat sensitive raw material of pharmaceutical industry, chemical industry, foodstuff industry, chemical industry, Chinese traditional medicine industry, etc.
Features
1. Higher drying speed at lower temperature and the heat energy can be used fully.
2. Dry at low temperature or drying of heat sensitive raw material.
3. Dry raw materials that contain solvent and the solvent needs to recover.
4. Before drying, it can carry out disinfectant treatment. during drying, any impurity can not enter in it.
5. The dryer belongs to static vacuum one, the shape and volume of raw materials can not be damaged.
Technical Parameters
| Model | FZG-10 | FZG-15 | FZG-20 |
| Size of baking tray (mm) | 460×640×45 | 460×640×45 | 460×640×45 |
| Quantity of baking trays | 20 | 32 | 48 |
|
Work pressure inside the pipe of baking support (MPa) |
≤0.784 | ≤0.784 | ≤0.784 |
|
operation temperature of baking support (℃) |
35-150 | 35-150 | 35-150 |
| vacuum degree inside the chamber when operation idle(MPa) | -0.1 | -0.1 | -0.1 |
|
Under -0.1Mpa and 110℃, water evaporation rate (kg/m2 ·hr) |
7.2 | 7.2 | 7.2 |
| vacuum pump with condenser pump | 2X-70A-5.5KW | 2X-70A-5.5KW | 2X-90A-7.5KW |
| vacuum pump without condenser | SZ-2-4KW | SZ-2-4KW | SZ-2-5.5KW |
| Weight of drying chamber(kg) | 1400 | 2100 | 3200 |
| Inter size of chamber(mm) | 1500×1060×1220 |
1500×1400x1220
|
1500×1800x1220
|
| Outer size of chamber(mm) | 1924×1720x1513 | 1513×1924x2060 | 1924×2500x1513 |
