| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | YZG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 20sets per month |
| Product Name: | Vacuum Drying Oven | Drying Type: | Static |
|---|---|---|---|
| Tank Shape: | Round | Feature: | Low Temperature |
| Special Use: | Solvent Recovery | Application: | Foodstuff |
| Highlight: | Conical Static Vacuum Oven |
||

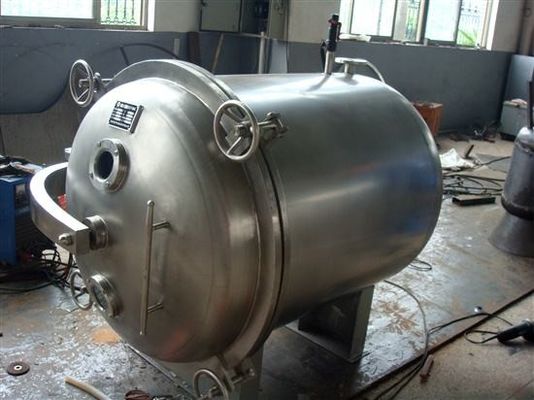

round shape static vacuum drying oven tray dryer for foodstuff
Round Shape Static Vacuum Dryer Oven , Industrial Tray Dryer For Foodstuff
Description
round shape static vacuum drying oven tray dryer for foodstuff is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying. If use vacuum to take air and humidity out, the dry speed will be faster.
Note: If use condensator, the solvent in raw material can be recovered. If use SK series water ring vacuum pump or ZSWJ series hydraulic inject vacuum pump sets, condensator can not be used and the investment could be saved.
Application
round shape static vacuum drying oven tray dryer for foodstuff is suitable for drying heat sensitive raw material of pharmaceutical industry, chemical industry, foodstuff industry, chemical industry, Chinese traditional medicine industry, etc.
Features
1. Under the condition of vacuum,the boiling point of raw material will decrease and make the evaporation efficiency high Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.
2. The heat source for evaporation may be low pressure steam or surplus heat steam.
3. The heat loss is less.
4. Before drying,the treatment of disinfection may be carried Out During the period of drying,there is no impurity material mixed. It is in conformity.
5. It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.
Technical Parameters
| Model | YZG-600 | YZG-800 | YZG-1000 | YZG-1400 |
| Size of baking tray (mm) | 310×600×45 | 520×410×45 | 520×410×45 | 460×640×45 |
| Quantity of baking trays | 4 | 4 | 12 | 32 |
|
Work pressure inside the pipe of baking support (MPa) |
≤0.784 ) |
≤0.784 | ≤0.784 | ≤0.784 |
|
operation temperature of baking support (℃) |
35-150 | 35-150 | 35-150 | 35-150 |
| vacuum degree inside the chamber when operation idle(MPa) | -0.1 | -0.1 | -0.1 | -0.1 |
|
Under -0.1Mpa and 110℃, water evaporation rate (kg/m2 ·hr) |
7.2 | 7.2 | 7.2 | 7.2 |
| vacuum pump with condenser pump | 2X-15A -2KW | 2X-30A-3KW | 2X-30A-3KW | 2X-70A-5.5KW |
| vacuum pump without condenser | SZ-0.5-1.5kW | SZ-1-2.2KW | SZ-1-2.2KW | SZ-2-4KW |
| Weight of drying chamber(kg) | 250 | 600 | 800 | 1400 |
| Inter size of chamber(mm) | φ600×976 | φ800×1247 | φ1000×1527 | φ1400×2054 |
| Outer size of chamber(mm) | 1135×810×1020 | 1700×1045×1335 | 1693×1190×1500 | 2386×1675×1920 |
Instruction to Ordering
1. When order, please choose suitable vacuum drier In accordance with the physical property. When order, please choose suitable vacuum drier in accordance with the physical property, primary moisture and final moisture of raw material to be dried and factors such as temperature, vacuum, drying amount and time and so on. Vacuum drier with same model has four heating ways, i.e. steam, hot water, heat conduction oil and electric heat. For example, in order to increase the output of product, the drying layer can be increased suitably. Please tell our
factory in time.
2. The auxiliary parts of vacuum drying system indicated in User’s Manual can be supplied and installed by our factory. Please indicate them when order.
If having special requirements, our factory can also design, manufacture and install as request.
3. For the equipment, our factory will carry out guarantee of repair, replacement and refund of substandard
products. All subassembly can be supplied in a long time. Please put your mind at rest.
