| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | DZG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Product Name: | Industrial Drying Equipment / Vacuum Dryer | Features: | Sterile Grade |
|---|---|---|---|
| Drying Type: | Closed | Application: | Pharmaceutical |
| Heat Resource: | Steam/conduction Oil | Material: | 304SS/316L |
| Highlight: | industrial drying oven,industrial flash dryer |
||

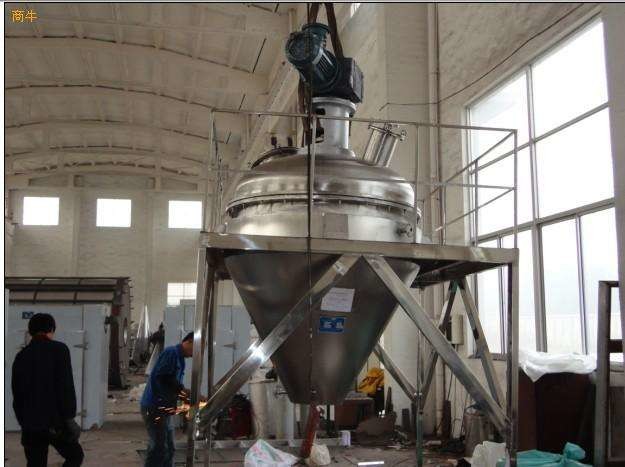

DZG series closed single cone vacuum dryer industrial drying equipment
Closed Vacuum Drying Chamber , Single Cone Industrial Vacuum Dryer DZG Series
(1). Cone-Shape Mixing Dryer
(2). The structure is simple, easy to clean
(3). Convenient in discharging, conforms to the GMP
Features
1. Mixing and drying complete in one vessel, improve productive efficiency.
2. Being adapted jacket for heating, decrease energy consumption.
3. Being adapted vacuum drying, could keep heat and mass transfer, especially suit for thermal sensitive material.
4. The structure is simple, easy to clean, convenient in discharging, conforms to the GMP standard.
5. Provides many kinds of agitation form match, may carry on the mass production.
6. DZG series closed single cone vacuum dryer industrial drying equipment could carry on cooling, sterilization operation.
Technical Parameter
| Type | 50 | 100 | 200 | 500 | 1000 | 1500 | 2000 | 3000 |
| Volume(L) | 50 | 100 | 200 | 500 | 1000 | 1500 | 2000 | 3000 |
| Max work volume(L) | 35 | 70 | 140 | 350 | 700 | 1000 | 1400 | 2100 |
| Max. inner diameter (Ømm) | 500 | 620 | 800 | 1100 | 1350 | 1550 | 1700 | 1950 |
| Stirring motor power(kw) | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 15 | 18.5~22 |
| Water evaporation(kg/h) | 3~6 | 4~7 | 5~9 | 9~15 | 16~25 | 20~35 | 25~45 | 35~60 |
| Overall dimension |
100X650 X1580 |
1200X800 X2100 |
1300X950 X2600 |
1600X1200 X3400 |
2000X1500 X4850 |
2200X1800 X5500 |
2500X2000 X6250 |
3000X2800 X6800 |
