| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | HG,GT |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Drum Dryer / Industrail Drying Equipment | Application: | Cereal |
|---|---|---|---|
| Structure: | Cylinder | Heating: | Steam,hot Water |
| Feature: | Low Temperature | Material: | Liquid |
| Highlight: | industrial drying oven,industrial flash dryer,7.5kw Industrial Drum Dryer |
||

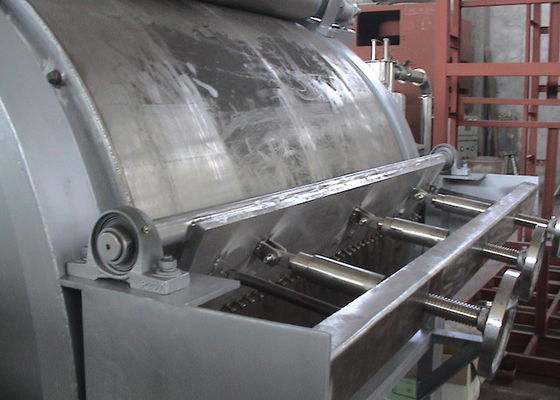

Cylinder starch drum Dryer for Cereal / Potato Flakes Drum Dryer Production Line
Cylinder Starch Industrial Drum Dryer For Cereal / Potato Flakes Production Line
Scope of application
Cylinder starch drum Dryer for Cereal/Potato Flakes Production Line is suitable for drying oatmeal chocolate, cereal, compound cereal, red jujube chocolate, liquid raw material or sticky material in chemical industry, dyestuff industry, pharmaceutical industry, foodstuff industry, and metallurgy industry, and etc.
operating principle
Cylinder starch drum Dryer for Cereal/Potato Flakes Production Lineutilizes the high-speed relative motion between movable and fixed fluted disc to crush the raw material to be crushed and creates friction force. The crushed raw material can be discharged through grinding chamber. Moreover, different size of raw material can be got through exchanging screen with different mesh. This machine is in conformity with the requirement s of GMP and it is made of stainless steel. No dust emissions during production process.
Features
1. High heat efficiency: The heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical with operation circle. Most of the heats can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2. Flexible operation elasticity and wide application: Various drying factors of the dryer can be adjusted, such as concentration of the liquid, thickness of material film, temperature of heating medium, rotating speed of the drum, and etc. These factors can change drying efficiency of the cylinder dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry different materials and meet different production requirements.
3. Short drying period: The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It also can be pressure reducing operated if it is put in vacuum vessel.
4. Fast drying rate: The thickness of the material film on the wall of the cylinder is very thin. Normal, thickness is 0.3 to 1.5mm. The directions of heat and mass transmittal are identical so the evaporation strength on the surface of material film can be 20-70 kg.H2O/m2.h.
Technical process
| Parameter Spec. | Φ800×1600 | Φ1000×2000 | Φ1200×2000 | Φ1400×2400 | Φ1600×2400 |
| Heating Source Pressure(MPa) | ≤0.6 | ||||
| Main Motor Power (kw) | 3 | 4 | 4 | 5.5 | 7.5 |
| Heating Transmission Area(m2) | 4 | 6.2 | 7.5 | 10.5 | 12 |
| Speed of the roller (rpm) | 0.5~5 | ||||
| Heating Source | Steam and Conducting oil | ||||
| Feeding method | top or bottom | ||||
