| Place of Origin: | CHNA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | HZG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Industrial Drying Equipment / Rotary Drum Dryer | Capacity: | ≦ 2 Tons/h |
|---|---|---|---|
| Feature: | Hight Quality / Low Cost | Application: | Corn |
| Voltage: | Customer | Dryer Shape: | Cylinder |
| Capacity: | Large Capacity | Dryer Type: | Continuous |
| Highlight: | industrial drying oven,rotary drum dryer |
||

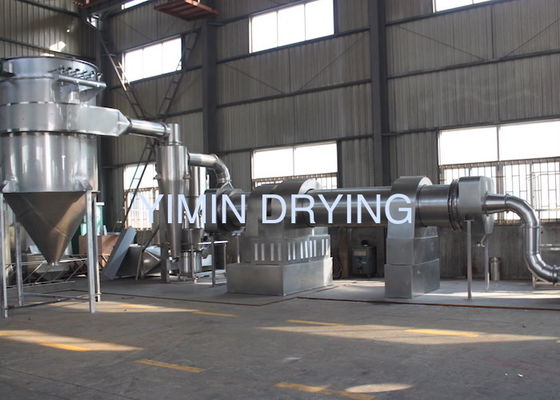

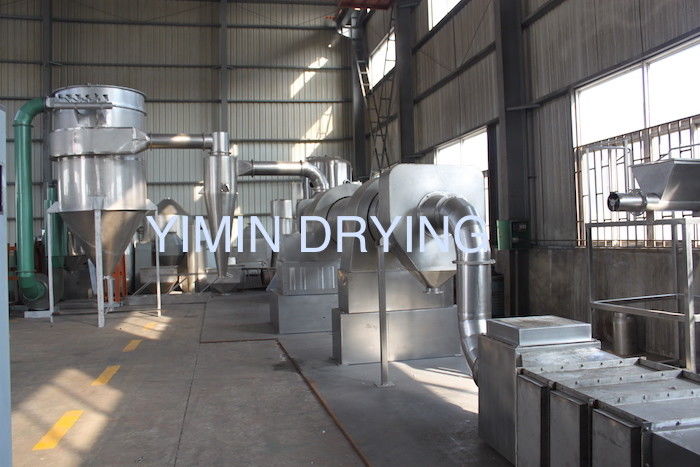

HZG series Low Cost and High Quality Corn Rotary Drum Dryer
Description
HZG series Low Cost and High Quality Corn Rotary Drum Dryer is mainly used in per buring of rigid magnet oxygen pulverized powder, it is also suitable for chemical industy and agriculture. It consists of main kiln body, supporting drive set, cooling pipe, oil fuel system, electricity control, secondary air inlet set, exhaust dust set and warm-up kiln body etc. The machine has function like: an alarm for over temperature, give an alarm for over loading, auto control for working temperature, oxygen atmosphere is adjustable in the kiln, etc.
Technical parameters
|
Model |
Main kiln body | Capacity | Inlet Temperature | Outlet Temperature | Motor | |||||
| Inner diameter Length | Angle Speed |
Type |
Power | Speed | ||||||
| mm | mm | o | r/min | t/h | ℃ | ℃ | KW | r/min | ||
| ZG12120 | 1200 | 12000 |
2-5 |
4.7 | 2-2.5 |
150-250 |
60-80 |
Y160M-4 | 11 | 1460 |
| ZG15120 | 1500 | 12000 | 5 | 4-6 | Y180L-6 | 15 | 970 | |||
| ZG15150 | 1500 | 15000 | 5 | 5-7 | Y180L-6 | 15 | 970 | |||
| ZG18150 | 1800 | 15000 | 3.9 | 7-10 | Y200L1-6 | 18.5 | 970 | |||
| ZG20200 | 2000 | 20000 | 3.9 | 8-14 | Y200L2-6 | 22 | 970 | |||
| ZG22220 | 2200 | 22000 | 3.2 | 12-16 | Y250M-6 | 37 | 970 | |||
| Technical data |
| Type | Gradient(%) | Speed(r/min) | Inlet air temperature | Power(KW) | Production(t/h) | Weight(t) |
| 600*6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
| 800*8000 | 3-5 | 3-8 | ≤ 700 | 4 | 0.8-2 | 3.5 |
| 800*10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
| 1000*10000 | 3-5 | 3-8 | ≤ 700 | 5.5 | 1-3.5 | 5.6 |
| 1200*10000 | 3-5 | 3-8 | ≤ 700 | 7.5 | 1.8-5 | 14.5 |
| 1200*12000 | 3-5 | 3-8 | ≤ 700 | 11 | 2-6 | 14.8 |
| 1500*12000 | 3-5 | 2-6 | ≤ 700 | 15 | 3.5-9 | 17.8 |
| 1800*12000 | 3-5 | 2-6 | ≤ 700 | 18 | 5-12 | 25 |
| 2200*12000 | 3-5 | 15-6 | ≤ 700 | 18.5 | 6-15 | 33 |
| 2200*18000 | 3-5 | 15-6 | ≤ 700 | 22 | 10-18 | 53.8 |
| 2200*20000 | 3-5 | 15-6 | ≤ 700 | 30 | 12-20 | 56 |
| 2400*20000 | 3-5 | 15-5 | ≤ 700 | 37 | 18-30 | 60 |
| 3000*20000 | 3-5 | 15-5 | ≤ 700 | 55 | 25-35 | 78 |
| 3000*25000 | 3-5 | 15-5 | ≤ 700 | 75 | 32-40 | 104.9 |
Feature
1. The motorization level of the barrel is high, and the production capacity is high.
2. The resistance that the material passes through the barrel is less, and the power consumption is low.
3. Application capability to different characters of materials is high.
4. The operation is stable, the operation fee is low, and the uniformity of product drying is good.
Applications
1. For materials to dried under low temperature and large production in line.
2. Application for drying big particles, heavy particles in the field of chemical mining, metallurgical industry and so on. For example: slag of blast furnace, coal, metallic, phosphorus fertilizer, thiamin and so on.
3. For drying powder, grannle raw materials which have special requirements such as :HP vesicant, lees, precipitated calcium carbonate, active clay, magnetic powder, graphite, and residue medical and so on.
