| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | DW,DW-A,DW-B,DW-C |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Industrial Drying Equipment/belt Dryer | Application: | Fruit/vegetable |
|---|---|---|---|
| Feature: | Belt | Belt Type: | Mesh |
| Dryer Type: | Continuous | Material: | 304SS/316L |
| Highlight: | rotary drum dryer,industrial flash dryer,304SS Belt Drying Equipment |
||

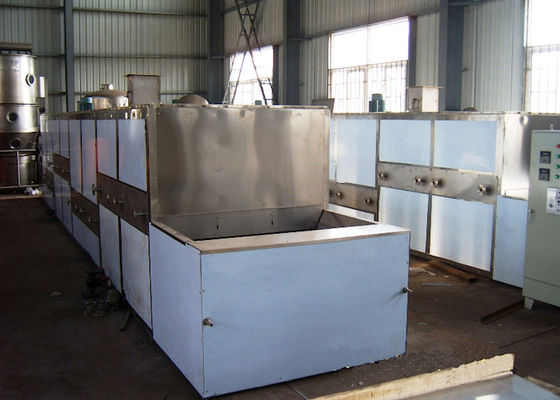

DW Series Belt Type Industrial Drying Equipment for fruit and vegetable
Descriptions
The raw material can be spread on the conveyer belt through suitable auxiliary mechanism such as distributor, vibrating belt, pulverizer or granulator. The conveyor passes one channel or several channels consisting of heating unit.. Each heating unit is equipped with air heating and circle system. Each channel has one or several damp exhaust system. When the conveyor passes it, hot air passes through raw material from up to low or from low to up. In this way, it makes raw material dry uniformity.
Applications
The belt drier is an usual continuous dryer. being widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction material industry, electronics industry and so on. Particularly, it is suitable to dry the raw materials of sheet, strip or granule that are good in air permeability. For the paste substance of filter cakes, it is better to dry them first to make them become granule or strip through granulator.
Features
1. The amount of air, heating-up temperature, staying time of raw material can be adjusted in order to get the best dry effect.
2. The configuration of equipment is flexible. It can use the washing system of screen belt and the cooling system of raw materials.
3. Most of air can be used through circulation. Save energy greatly
4. Being adapted unique air dividing apparatus, it makes the hot air distributed uniformly and guarantee the quality of products is constant.
5. The heat source may be steam, heat conduction oil, electricity or coal (oil).
Typical Products
Dehydrated vegetable, granule feedstuff, monosodium glutamate, chicken abstract, shredded coconut stuffing, organic pigment, synthetic rubber, PP fiber, medicines, medicinal materials, small wood products, plastic products, aging and solidifying of electronics elements, calcium carbonate, white carbon black dyestuff and so on.
DW-A Model belt dryer
Technical Parameters
| Model | DW-1.2-8A | DW-1.2-10A | DW-1.6-8A | DW-1.6-10A | DW-2-8A | DW-2-10A | ||
| Quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | ||
| Width of belt(m) | 1.2 | 1.6 | 2 | |||||
| Length of dry section(m) | 8 | 10 | 8 | 10 | 8 | 10 | ||
| Thickness of raw material spreading(mm) | 10-80 | |||||||
| Operation temperature(℃) | 50～140 | |||||||
| Steam pressure(Mpa) | 0.2～0.8 | |||||||
| Steam consumption(kg/h) | 120-300 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 | ||
| Dry time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | ||
| Dry capacity(kg water/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 | ||
| Quantity of fan | 5 | 6 | 5 | 6 | 5 | 6 | ||
| Total equipped power inside(kw) | 9.9 | 12.1 | 9.9 | 12.1 | 18.2 | 22.2 | ||
| Total equipped power(kw) | 11.4 | 13.6 | 11.4 | 13.6 | 19.7 | 23.7 | ||
| Overall dimensions | L(m) | 9.77 | 11.77 | 9.77 | 11.77 | 9.77 | 11.77 | |
| W(m) | 1.5 | 1.5 | 2.24 | 2.24 | 2.66 | 2.66 | ||
| H(m) | 2.83 | 2.83 | 2.83 | 2.83 | 3.50 | 3.50 | ||
| Weight(kg) | 4800 | 5780 | 5400 | 6550 | 6350 | 7800 | ||
Explanation:
1. Evaporation rate mainly depends on the area of drying section, which is designed according to details of raw material. While, the width is often relative fixed value,1.2m, 1.6m,2.0m to choose.
2. The vaporized amount of water should be assured in accordance with the dry temperature, thickness of raw material spreading and stay time.
3. The dimension is just for reference.
DW-B Model belt dryer
Technical parameters
| Model | DW-1.2-8B | DW-1.2-10B | DW-1.6-8B | DW-1.6-10B | DW-2-8B | DW-2-10B | ||
| Quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | ||
| Width of belt(m) | 1.2 | 1.6 | 2 | |||||
| Length of dry section(m) | 8 | 10 | 8 | 10 | 8 | 10 | ||
| Thickness of raw material spreading(mm) | 10-80 | |||||||
| Operation temperature(℃) | 50～140 | |||||||
| Steam pressure(Mpa) | 0.2～0.8 | |||||||
| Steam consumption(kg/h) | 120-300 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 | ||
| Dry time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | ||
| Dry capacity(kg water/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 | ||
| Quantity of fan | 5 | 6 | 5 | 6 | 5 | 6 | ||
| Total equipped power inside(kw) | 13.6 | 15.8 | 13.6 | 15.8 | 14.7 | 16.9 | ||
| Total equipped power(kw) | 11.4 | 13.6 | 11.4 | 13.6 | 19.7 | 23.7 | ||
| Overall dimensions | A(m) | 1.2 | 1.2 | 1.6 | 1.6 | 2.0 | 2.0 | |
| A1(m) | 1.95 | 1.95 | 2.35 | 2.35 | 2.75 | 2.75 | ||
| B(m) | 8.0 | 10.0 | 8.0 | 10.0 | 10.0 | 10.0 | ||
| B1 | 9.5 | 11.5 | 9.5 | 11.5 | 9.5 | 11.5 | ||
Note: The parameters above mentioned is for reference only. The dry strength is concerned with many factors such as properties of raw material, operation temperature
DW3-B Model belt dryer(Multilayer belt dryer)
Technical parameters
| Model | DW3-1.2-8B | DW3-1.2-10B | DW3-1.6-8B | DW3-1.6-10B | DW3-2-8B | DW3-2-10B | ||
| Quantity of unit | 8 | 10 | 8 | 10 | 8 | 10 | ||
| Width of belt(m) | 1.2 | 1.6 | 2 | |||||
| Length of dry section(m) | 24 | 30 | 24 | 30 | 24 | 30 | ||
| Thickness of raw material spreading(mm) | 10-80 | |||||||
| Operation temperature(℃) | 50～140 | |||||||
| Steam pressure(Mpa) | 0.2～0.8 | |||||||
| Steam consumption(kg/h) | 240-550 | 300-750 | 300-750 | 340-950 | 350-1000 | 400-1200 | ||
| Dry time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | ||
| Dry Strength(kg .H2o/m2.h) | 6~30 | |||||||
| Total equipped power(kw) | 21.7 | 26.1 | 21.7 | 27.2 | 29.2 | 35.2 | ||
| Overall dimensions | A(m) | 1.2 | 1.2 | 1.6 | 1.6 | 2.0 | 2.0 | |
| A1(m) | 2.1 | 2.1 | 2.8 | 2.8 | 3.2 | 3.2 | ||
| B(m) | 8.0 | 10.0 | 8.0 | 10.0 | 8.0 | 10.0 | ||
| B1 | 12.5 | 14.5 | 12.5 | 14.5 | 12.5 | 14.5 | ||
Note: The parameters above mentioned is for reference only.The dry strength is concerned with many factors such as properties of raw material,operation temperature
