| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | CT,CT-C |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Oven Dryer/industrial Drying Equipment | Heating Resource: | Steam Radiator |
|---|---|---|---|
| Tray Number: | 48trays | Construction Material: | 304ss Or 316L |
| Working Type: | Batch | Application: | Most Material |
| Warranty: | One Year | Voltage: | According To Local Power |
| Highlight: | industrial drying oven,48 trays industrial hot air oven |
||

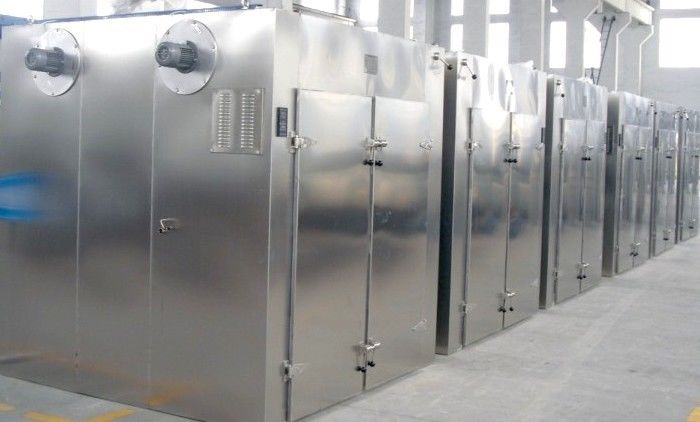

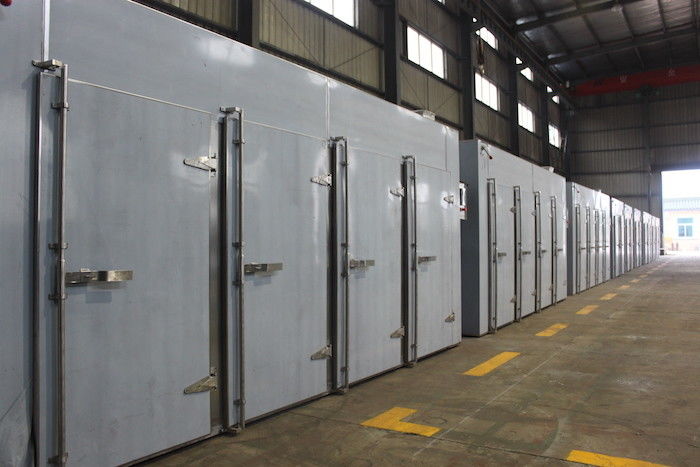

48 trays industrial hot air circulation oven dryer with steam radiator
CT-C-2 48 Trays Industrial Drying Equipment Laboratory Hot Air Oven With Steam Radiator
Feature
1. Most of hot air circling inside the oven. High thermal efficiency. Saving energy source.
2. Enhanced ventilation and adjustable air divider plate inside the oven. Raw materials can be dried evenly.
3. The heat source can be steam, hot water, electricity ,heat-conducting oil or hot air from furnace.
4. Low noise and stable operation. Automatically temperature control.
5. Convenient installation and maintenance.
6. Widely applications .Almost suitable for all kinds of raw materials.
Application
48 trays industrial hot air circulation oven dryer with steam radiator is suitable for heating and solidification, drying and dehydration of raw materials in pharmaceutical industry, chemical industry, foodstuff industry, agricultural and sideline products, aquatic products, light industry, heavy industry and so on. The raw materials can be medicine of raw materials, Chinese traditional medicine, and tablet of drink, immersed electuary, powder, granule, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements, drying varnish and so on.
| Brief Introduction | ||||
| Inner Hull | ||||
| Material: high quality SUS304 stainless steel | ||||
| advantage: corrosion resistance, high temperature resistance, the advantage of high cleanliness | ||||
| Body Shell | ||||
| Material: high quality cold rolled stainless steel sheet , angle bar , channel bar and so on | ||||
| Between shell and studio pack high-temperature insulation aluminum silicate cotton, the surface of the lacquer that bake | ||||
| Enclosure the overall design is reasonable, elegant shape. | ||||
| This product USES xmt7000 intelligent numbered automated process temperature control, the microcomputer constant temperature time, large area, uniformity of tubular heating |
Technical Parameters
| Model | Drying area | Capacity (kg/batch) | Fan power (kw) |
Steam consumption (kg/h) |
Radiation area(m2) | Electrical heater power(kw) | Overall dimension L,W,H(mm) | Door | Trolley | Tray | weight (kg) |
| CT-C-O | 7.1 | 60 | 0.45 | 10 | 10 | 6 | 1200×1000×1750 | 1 | 1 | 24 | 820 |
| CT-C-1 | 14.1 | 120 | 0.45 | 18 | 20 | 15 | 2300×1200×2000 | 2 | 2 | 48 | 1580 |
| CT-C-1A | 14.1 | 120 | 0.45 | 18 | 20 | 15 | 1200×2200×2000 | 1 | 2 | 48 | 1580 |
| CT-C-2 | 28.3 | 240 | 0.45×2 | 36 | 40 | 30 | 2300×2200×2000 | 2 | 4 | 96 | 1800 |
| CT-C-2A | 28.3 | 240 | 0.45×2 | 36 | 40 | 30 | 4460×1200×2290 | 4 | 4 | 96 | 1880 |
| CT-C-3 | 42.4 | 360 | 0.45×3 | 54 | 80 | 45 | 3430×2200×2000 | 3 | 6 | 144 | 2100 |
| CT-C-3A | 42.4 | 360 | 0.45×3 | 54 | 80 | 45 | 2300×3200×2000 | 2 | 6 | 144 | 2210 |
| CT-C-4 | 56.5 | 480 | 0.45×4 | 72 | 100 | 60 | 4460×2200×2290 | 4 | 8 | 192 | 2800 |
|
1.Information above for standard drying oven with Steam radiator or electrical heater, drying temperature 50~140℃. 2.Power above for axial flow fan (Default hot-air circulating fan).Centrifugal fan for optional. 3.Outer cover of the oven made of carbon steel or stainless steel. Inner shell aluminum alloy or stainless steel. 4.Tray without holes or with holes for optional. Dehumidify fan for optional. 5.Model including A is special trolley layout for the site with floor area limits.
|
|||||||||||
All data for reference only. According to the material features, we have the right to change but not notice, pardon!
Trays for optional
Standard tray tray with small holes
tray with large holes(5mm) mesh type handmade tray
